PRIUS BEARINGS · SLEWING RING BEARING

ROD02500
slewing ring bearing

ROD02500 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2681 mm, inside diameter 2214 mm, height 147 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD02500

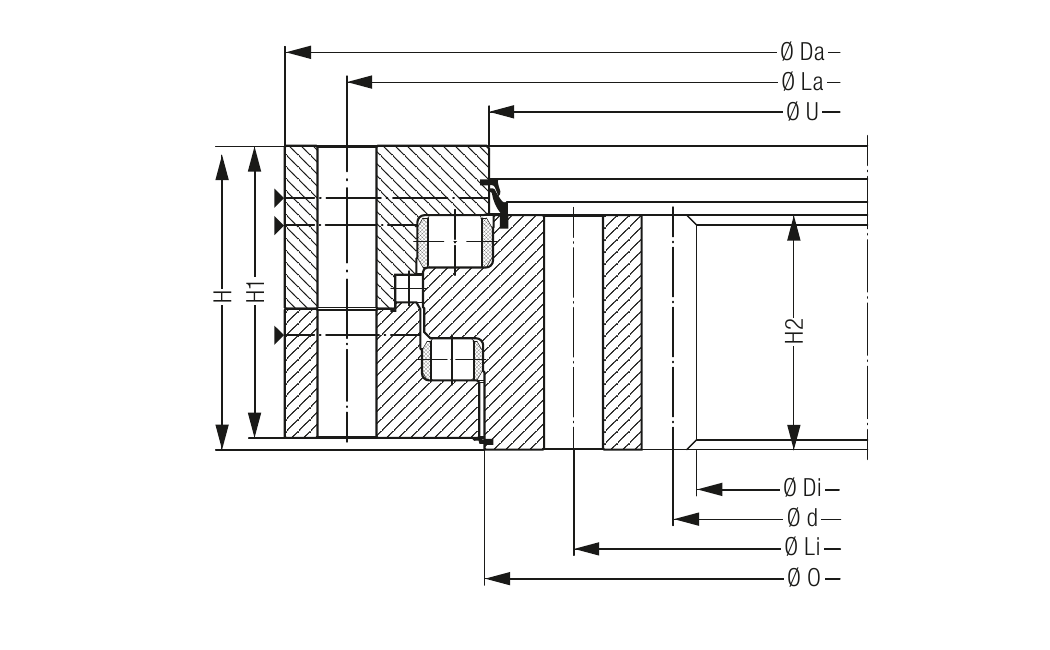

Liebherr catalogue section reference for ROD02500

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

ROD02500
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelROD02500
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,545 kg
Outside diameter Da (mm)2,681 mm
Inside diameter di (mm)2,214 mm
Ring height H (mm)147 mm
Outer reference ØO (mm)2,474 mm
Inner reference ØU (mm)2,463 mm
Outer ring height H1 (mm)138 mm
Inner ring height H2 (mm)117 mm
Outer mounting length La (mm)2,615 mm
Inner mounting length Li (mm)2,375 mm
Mounting hole count54
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)2,232 mm
Gear module18
Gear tooth count-124
Tooth correction-9
Tooth width b (mm)117 mm
Tooth force, standard (kN)183.1 kN
Tooth force, maximum (kN)366.2 kN
Basic static axial load rating C0a (kN)23,858 kN
Basic dynamic axial load rating Ca (kN)2,428 kN
Bearing typeROD 26 DJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingROD02240outside diameter 2516.4 mm, inside diameter 2059 mm, height 147 mm →Liebherr · Slewing ring bearingKUD02622outside diameter 2770 mm, inside diameter 2336 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02400outside diameter 2643.2 mm, inside diameter 2224 mm, height 124 mm →Liebherr · Slewing ring bearingKUD02220outside diameter 2461.2 mm, inside diameter 2090 mm, height 138 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for ROD02500?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For ROD02500, provide the complete reference and suffix, confirm outside diameter 2681 mm, inside diameter 2214 mm, height 147 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
