PRIUS BEARINGS · SLEWING RING BEARING

KUD02220
slewing ring bearing

KUD02220 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2461.2 mm, inside diameter 2090 mm, height 138 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02220

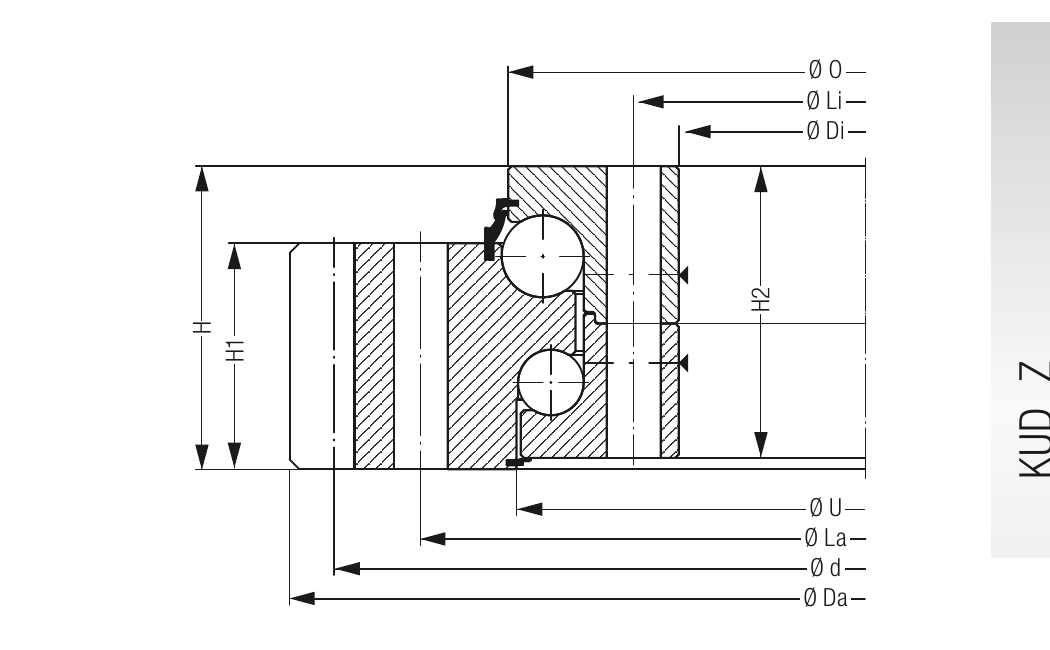

Liebherr catalogue section reference for KUD02220

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02220
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02220
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,019 kg
Outside diameter Da (mm)2,461.2 mm
Inside diameter di (mm)2,090 mm
Ring height H (mm)138 mm
Outer reference ØO (mm)2,254 mm
Inner reference ØU (mm)2,249 mm
Outer ring height H1 (mm)104 mm
Inner ring height H2 (mm)132 mm
Outer mounting length La (mm)2,335 mm
Inner mounting length Li (mm)2,135 mm
Mounting hole count60
Mounting hole diameter (mm)24 mm
Hole pitch diameter d (mm)2,422 mm
Gear module14
Gear tooth count173
Tooth correction7
Gear tip reduction k·m (mm)-1.4
Tooth width b (mm)104 mm
Tooth force, standard (kN)133.6 kN
Tooth force, maximum (kN)267.2 kN
Basic static axial load rating C0a (kN)15,194 kN
Basic dynamic axial load rating Ca (kN)1,068 kN
Bearing typeKUD 35 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingROD02240outside diameter 2516.4 mm, inside diameter 2059 mm, height 147 mm →Liebherr · Slewing ring bearingKUD02330outside diameter 2450 mm, inside diameter 2100 mm, height 120 mm →Liebherr · Slewing ring bearingKUD02235outside diameter 2457.6 mm, inside diameter 2115 mm, height 120 mm →Liebherr · Slewing ring bearingKUD02197outside diameter 2405.2 mm, inside diameter 2046 mm, height 154 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02220?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02220, provide the complete reference and suffix, confirm outside diameter 2461.2 mm, inside diameter 2090 mm, height 138 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
