PRIUS BEARINGS · SLEWING RING BEARING

KUD02235
slewing ring bearing

KUD02235 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2457.6 mm, inside diameter 2115 mm, height 120 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02235

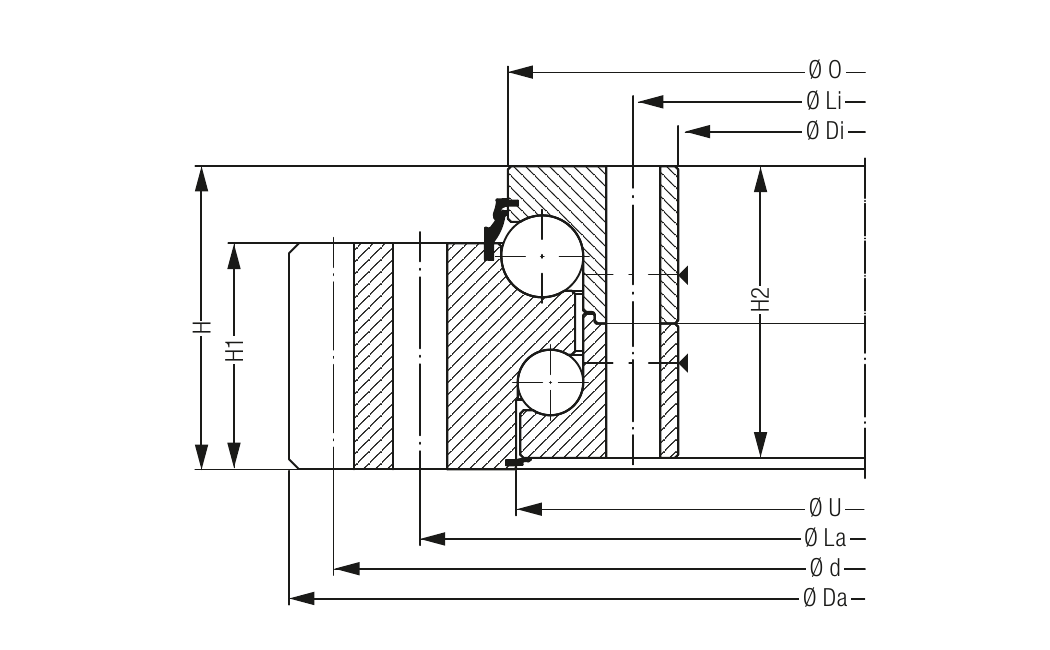

Liebherr catalogue section reference for KUD02235

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02235
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02235
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)827 kg
Outside diameter Da (mm)2,457.6 mm
Inside diameter di (mm)2,115 mm
Ring height H (mm)120 mm
Outer reference ØO (mm)2,264 mm
Inner reference ØU (mm)2,258 mm
Outer ring height H1 (mm)91 mm
Inner ring height H2 (mm)114 mm
Outer mounting length La (mm)2,345 mm
Inner mounting length Li (mm)2,160 mm
Mounting hole count52
Mounting hole diameter (mm)24 mm
Hole pitch diameter d (mm)2,424 mm
Gear module12
Gear tooth count202
Tooth correction6
Gear tip reduction k·m (mm)-1.2
Tooth width b (mm)91 mm
Tooth force, standard (kN)100.2 kN
Tooth force, maximum (kN)200.4 kN
Basic static axial load rating C0a (kN)13,125 kN
Basic dynamic axial load rating Ca (kN)914 kN
Bearing typeKUD 30 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02330outside diameter 2450 mm, inside diameter 2100 mm, height 120 mm →Liebherr · Slewing ring bearingKUD02250outside diameter 2475.2 mm, inside diameter 2089 mm, height 114 mm →Liebherr · Slewing ring bearingKUD02300outside diameter 2545.2 mm, inside diameter 2124 mm, height 124 mm →Liebherr · Slewing ring bearingKUD02350outside diameter 2573.2 mm, inside diameter 2189 mm, height 114 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02235?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02235, provide the complete reference and suffix, confirm outside diameter 2457.6 mm, inside diameter 2115 mm, height 120 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
