PRIUS BEARINGS · SLEWING RING BEARING

ROD01800
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD01800

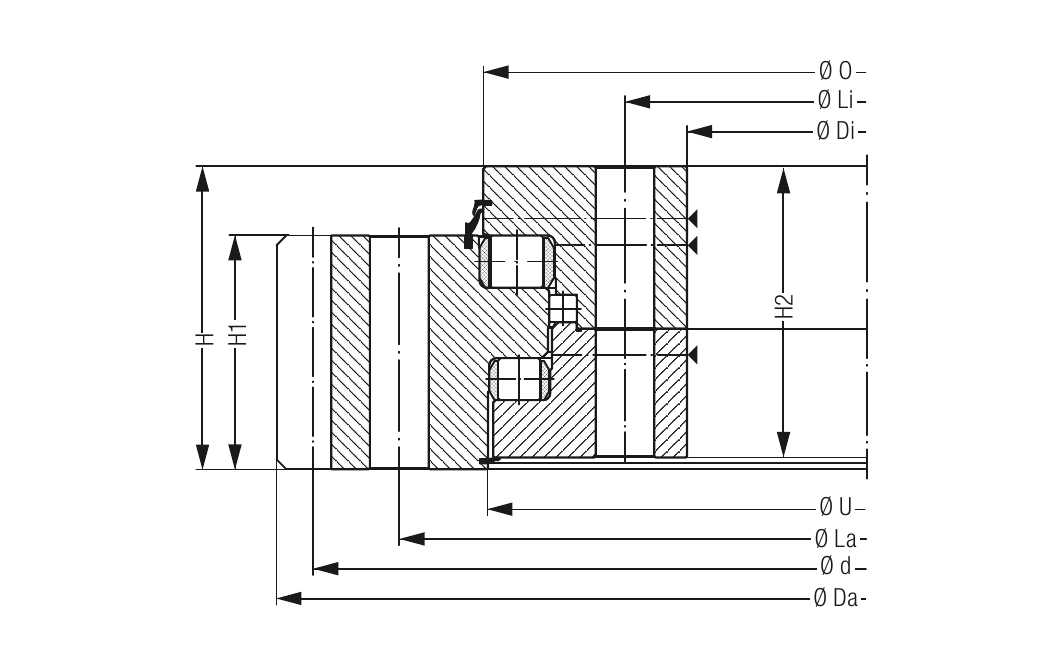

PRIUS BEARINGS ROD01800 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD01800
parameters

Key dimensions and load information for preliminary selection.

ModelROD01800
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,126 kg
Outside diameter Da (mm)2,076.8 mm
Inside diameter di (mm)1,619 mm
Ring height H (mm)147 mm
Outer reference ØO (mm)1,836 mm
Inner reference ØU (mm)1,826 mm
Outer ring height H1 (mm)117 mm
Inner ring height H2 (mm)138 mm
Outer mounting length La (mm)1,925 mm
Inner mounting length Li (mm)1,685 mm
Mounting hole count36
Bolt diameter (mm)30 mm
Hole pitch diameter d (mm)2,032 mm
Gear module16
Gear tooth count127
Tooth correction8
Tip Reduction-1.6
Tooth width b (mm)117 mm
Tooth force, standard (kN)162.7 kN
Tooth force, maximum (kN)325.4 kN
Basic static axial load rating C0a (kN)17,148 kN
Basic dynamic axial load rating Ca (kN)2,039 kN
Bearing typeROD 26 DA external gear
