PRIUS BEARINGS · SLEWING RING BEARING

RKD05600
slewing ring bearing

RKD05600 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 5923.2 mm, inside diameter 5342 mm, height 221 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL RKD05600

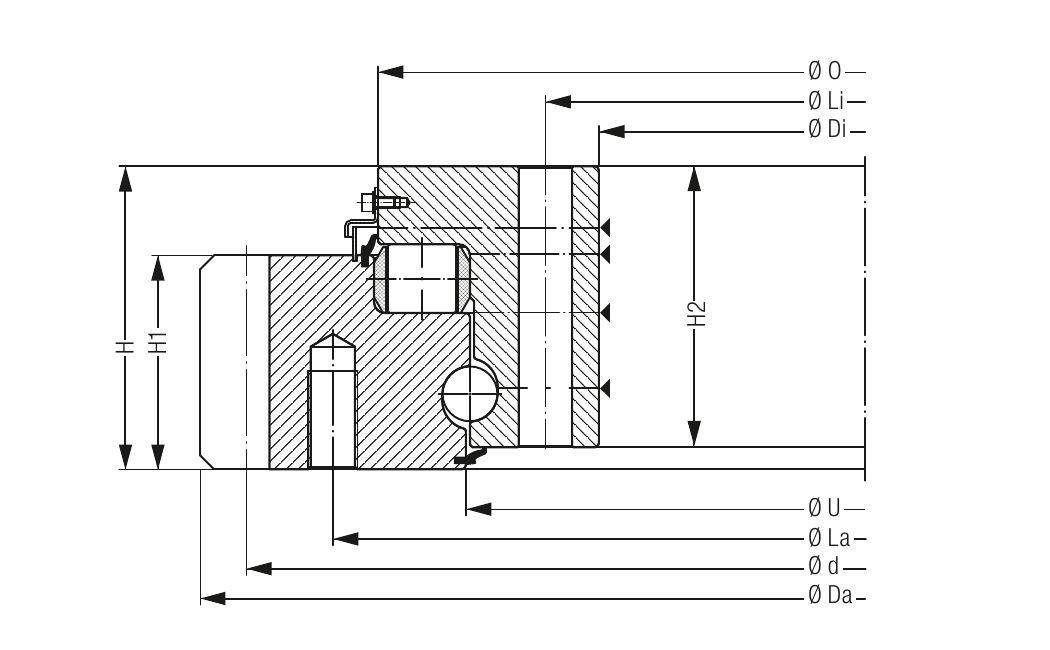

Liebherr catalogue section reference for RKD05600

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

RKD05600
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelRKD05600
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)6,397 kg
Outside diameter Da (mm)5,923.2 mm
Inside diameter di (mm)5,342 mm
Ring height H (mm)221 mm
Outer reference ØO (mm)5,668 mm
Inner reference ØU (mm)5,540 mm
Outer ring height H1 (mm)156 mm
Inner ring height H2 (mm)205 mm
Outer mounting length La (mm)5,730 mm
Inner mounting length Li (mm)5,420 mm
Mounting hole count90
Mounting hole diameter (mm)36 mm
Hole pitch diameter d (mm)5,856 mm
Gear module24
Gear tooth count244
Tooth correction12
Gear tip reduction k·m (mm)-2.4
Tooth width b (mm)156 mm
Tooth force, standard (kN)325.5 kN
Tooth force, maximum (kN)651 kN
Basic static axial load rating C0a (kN)103,430 kN
Basic dynamic axial load rating Ca (kN)8,877 kN
Bearing typeRKD 50 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingROD05600outside diameter 6019.2 mm, inside diameter 5335 mm, height 268 mm →Liebherr · Slewing ring bearingRKD05300outside diameter 5576 mm, inside diameter 5076 mm, height 183 mm →Liebherr · Slewing ring bearingROD05000outside diameter 5419.2 mm, inside diameter 4735 mm, height 268 mm →Liebherr · Slewing ring bearingRKD05000outside diameter 5276 mm, inside diameter 4776 mm, height 183 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for RKD05600?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For RKD05600, provide the complete reference and suffix, confirm outside diameter 5923.2 mm, inside diameter 5342 mm, height 221 mm, and include gear configuration, mounting-hole details, loads and operating speed.
