Slewing Rings/PRIUS BEARINGS/RKD03550← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKD03550
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL RKD03550

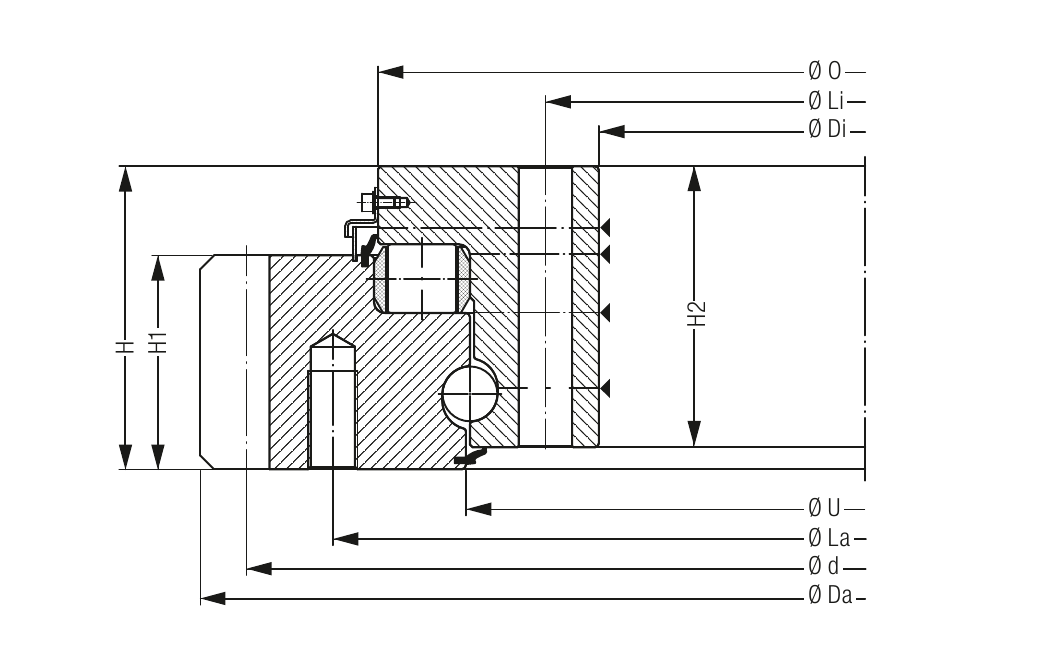

PRIUS BEARINGS RKD03550 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKD03550
parameters

Key dimensions and load information for preliminary selection.

ModelRKD03550
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)2,028 kg
Outside diameter Da (mm)3,773 mm
Inside diameter di (mm)3,358 mm
Ring height H (mm)159 mm
Outer reference ØO (mm)3,597 mm
Inner reference ØU (mm)3,509 mm
Outer ring height H1 (mm)109 mm
Inner ring height H2 (mm)143 mm
Outer mounting length La (mm)3,638 mm
Inner mounting length Li (mm)3,418 mm
Mounting hole count76
Bolt diameter (mm)27 mm
Hole pitch diameter d (mm)3,712 mm
Gear module16
Gear tooth count232
Tooth correction16
Tip Reduction-1.6
Tooth width b (mm)109 mm
Tooth force, standard (kN)160 kN
Tooth force, maximum (kN)320 kN
Basic static axial load rating C0a (kN)41,927 kN
Basic dynamic axial load rating Ca (kN)3,863 kN
Bearing typeRKD 32 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
