Slewing Rings/PRIUS BEARINGS/ROD03550← View all models

PRIUS BEARINGS · SLEWING RING BEARING

ROD03550
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD03550

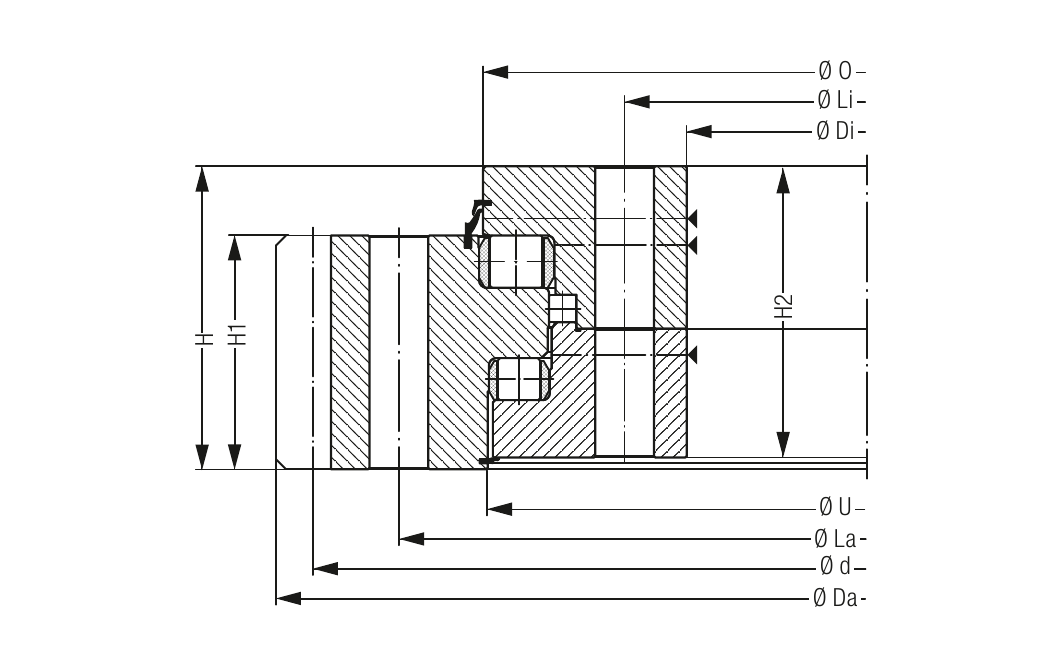

PRIUS BEARINGS ROD03550 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD03550
parameters

Key dimensions and load information for preliminary selection.

ModelROD03550
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)3,249 kg
Outside diameter Da (mm)3,889.6 mm
Inside diameter di (mm)3,332 mm
Ring height H (mm)181 mm
Outer reference ØO (mm)3,591 mm
Inner reference ØU (mm)3,580 mm
Outer ring height H1 (mm)139 mm
Inner ring height H2 (mm)172 mm
Outer mounting length La (mm)3,705 mm
Inner mounting length Li (mm)3,410 mm
Mounting hole count66
Bolt diameter (mm)36 mm
Hole pitch diameter d (mm)3,828 mm
Gear module22
Gear tooth count174
Tooth correction11
Tip Reduction-2.2
Tooth width b (mm)139 mm
Tooth force, standard (kN)265.9 kN
Tooth force, maximum (kN)531.8 kN
Basic static axial load rating C0a (kN)41,927 kN
Basic dynamic axial load rating Ca (kN)3,863 kN
Bearing typeROD 32 DA external gear
