Slewing Rings/PRIUS BEARINGS/KUD01956← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD01956
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01956

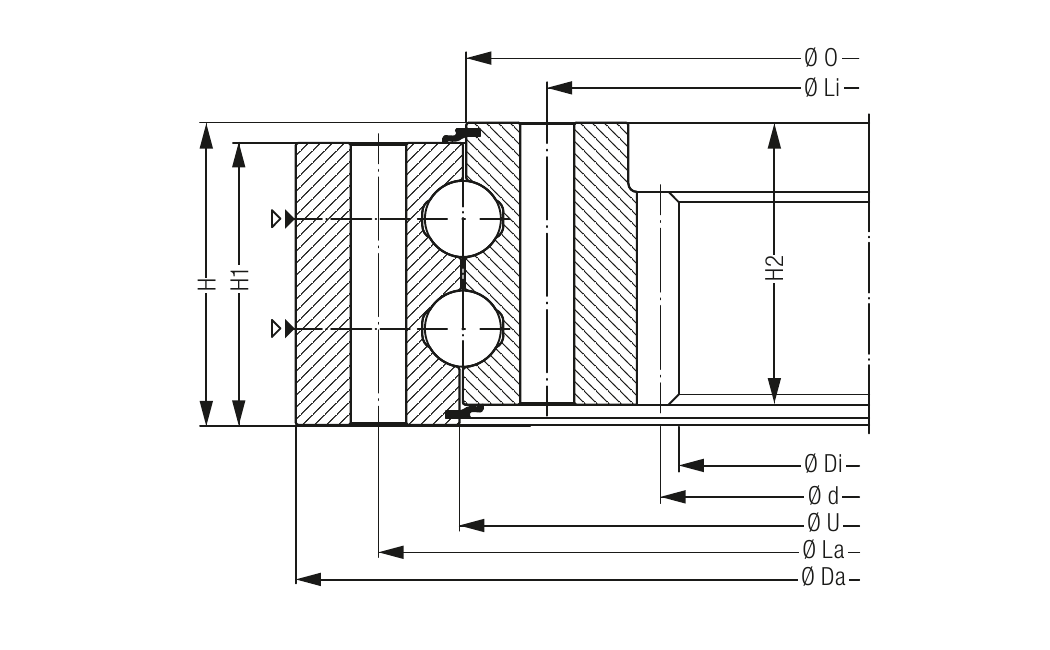

PRIUS BEARINGS KUD01956 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD01956
parameters

Key dimensions and load information for preliminary selection.

ModelKUD01956
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,216 kg
Outside diameter Da (mm)2,120 mm
Inside diameter di (mm)1,730.4 mm
Ring height H (mm)170 mm
Outer pitch diameter (mm)2,054 mm
Inner pitch diameter (mm)1,855 mm
Mounting hole count52
Bolt diameter (mm)30 mm
Gear module12
Gear tooth count-145
Basic static axial load rating C0a (kN)25,612 kN
Basic dynamic axial load rating Ca (kN)1,761 kN
Outer reference ØO (mm)1,954 mm
Inner reference ØU (mm)1,958 mm
Outer ring height H1 (mm)158 mm
Inner ring height H2 (mm)158 mm
Outer mounting length La (mm)2,054 mm
Inner mounting length Li (mm)1,855 mm
Hole pitch diameter d (mm)1,740 mm
Pinion pitch diameter Pd (mm)1,740 mm
Pinion tooth count z-145
Tooth width b (mm)120 mm
Tooth force, standard (kN)132.2 kN
Tooth force, maximum (kN)264.3 kN
Bearing typeKUD 45 WJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
