PRIUS BEARINGS · SLEWING RING BEARING

KUD01506
slewing ring bearing

KUD01506 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1617 mm, inside diameter 1334.4 mm, height 123 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01506

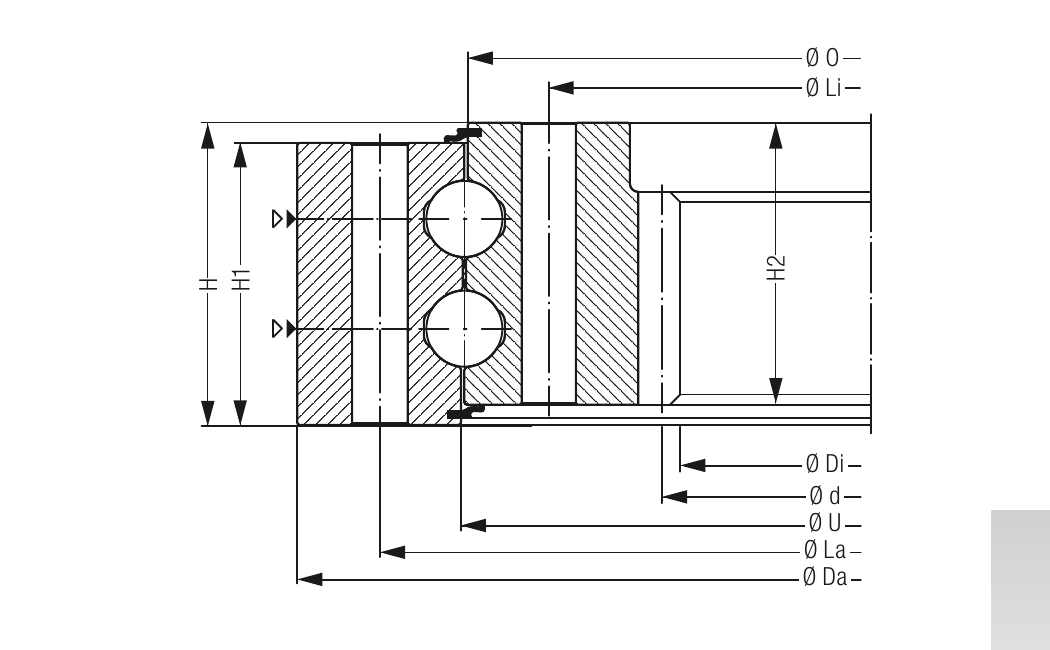

Liebherr catalogue section reference for KUD01506

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01506
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01506
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)488 kg
Outside diameter Da (mm)1,617 mm
Inside diameter di (mm)1,334.4 mm
Ring height H (mm)123 mm
Outer reference ØO (mm)1,504 mm
Inner reference ØU (mm)1,508 mm
Outer ring height H1 (mm)111 mm
Inner ring height H2 (mm)111 mm
Outer mounting length La (mm)1,573 mm
Inner mounting length Li (mm)1,436 mm
Mounting hole count48
Mounting hole diameter (mm)20 mm
Hole pitch diameter d (mm)1,344 mm
Gear module12
Gear tooth count-112
Tooth correction-6
Gear tip reduction k·m (mm)-1.2
Tooth width b (mm)111 mm
Tooth force, standard (kN)128.7 kN
Tooth force, maximum (kN)257.4 kN
Basic static axial load rating C0a (kN)13,113 kN
Basic dynamic axial load rating Ca (kN)1,051 kN
Bearing typeKUD 30 WJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD01440outside diameter 1653.6 mm, inside diameter 1320 mm, height 120 mm →Liebherr · Slewing ring bearingKUD01497outside diameter 1665.6 mm, inside diameter 1383 mm, height 123 mm →Liebherr · Slewing ring bearingROD01400outside diameter 1635.2 mm, inside diameter 1253 mm, height 132 mm →Liebherr · Slewing ring bearingKUD01630outside diameter 1750 mm, inside diameter 1416 mm, height 120 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01506?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01506, provide the complete reference and suffix, confirm outside diameter 1617 mm, inside diameter 1334.4 mm, height 123 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
