PRIUS BEARINGS · SLEWING RING BEARING

KUD01500-030VJ15-900-000
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01500-030VJ15-900-000

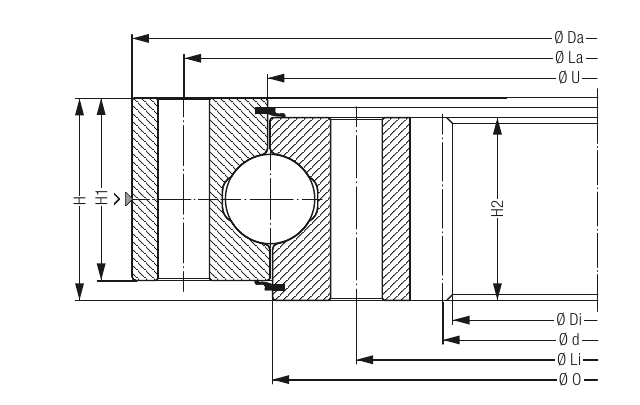

PRIUS BEARINGS KUD01500-030VJ15-900-000 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD01500-030VJ15-900-000
parameters

Key dimensions and load information for preliminary selection.

ModelKUD01500-030VJ15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)300 kg
Outside diameter Da (mm)1,600 mm
Inside diameter di (mm)1,334.4 mm
Ring height H (mm)84 mm
Outer pitch diameter (mm)1,500 mm
Inner pitch diameter (mm)1,436 mm
Mounting hole count48
Bolt diameter (mm)20 mm
Gear module12
Gear tooth count112
Basic static axial load rating C0a (kN)6,556 kN
Basic dynamic axial load rating Ca (kN)648 kN
Bearing typeKUD 030 internal gear
Outer reference ØO (mm)1,500 mm
Inner reference ØU (mm)1,500 mm
Outer ring height H1 (mm)72 mm
Inner ring height H2 (mm)72 mm
Outer mounting length La (mm)1,500 mm
Inner mounting length Li (mm)1,436 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD01600-030VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD01700-030VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD01800-030VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD01900-030VJ15-900-000View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
