PRIUS BEARINGS · SLEWING RING BEARING

KUD01500-030VA15-900-000
slewing ring bearing

KUD01500-030VA15-900-000 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1665.6 mm, inside diameter 1392 mm, height 84 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS KUD01500-030VA15-900-000 external gear slewing ring bearingEXTERNAL GEAR / KUD01500-030VA15-900-000

DIMENSIONAL REFERENCE

MODEL KUD01500-030VA15-900-000

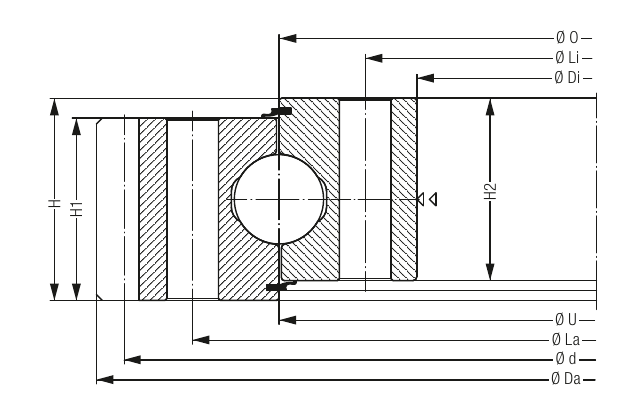

Liebherr catalogue section reference for KUD01500-030VA15-900-000

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01500-030VA15-900-000
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01500-030VA15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeExternal gear KUD 30 VA
Weight (kg)308 kg
Outside diameter Da (mm)1,665.6 mm
Inside diameter di (mm)1,392 mm
Ring height H (mm)84 mm
Outer pitch diameter (mm)1,564 mm
Inner pitch diameter (mm)1,436 mm
Mounting hole count48
Mounting hole diameter (mm)20 mm
Gear module12
Gear tooth count136
Basic static axial load rating C0a (kN)6,556 kN
Basic dynamic axial load rating Ca (kN)648 kN
Bearing typeKUD 030 external gear
Outer reference ØO (mm)1,500 mm
Inner reference ØU (mm)1,500 mm
Outer ring height H1 (mm)72 mm
Inner ring height H2 (mm)72 mm
Outer mounting length La (mm)1,564 mm
Inner mounting length Li (mm)1,436 mm
Pinion tooth count z136
Pinion pitch diameter Pd (mm)1,632 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD01500outside diameter 1665.6 mm, inside diameter 1392 mm, height 84 mm →Liebherr · Internal gear KUD 30 VJKUD01500-030VJ15-900-000outside diameter 1600 mm, inside diameter 1334.4 mm, height 84 mm →Liebherr · External gear KUD 30 VAKUD01600-030VA15-900-000outside diameter 1761.6 mm, inside diameter 1492 mm, height 84 mm →Liebherr · External gear KUD 30 VAKUD01700-030VA15-900-000outside diameter 1869.6 mm, inside diameter 1592 mm, height 84 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01500-030VA15-900-000?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01500-030VA15-900-000, provide the complete reference and suffix, confirm outside diameter 1665.6 mm, inside diameter 1392 mm, height 84 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
