PRIUS BEARINGS · SLEWING RING BEARING

KUD01255-025VJ15-900-000
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01255-025VJ15-900-000

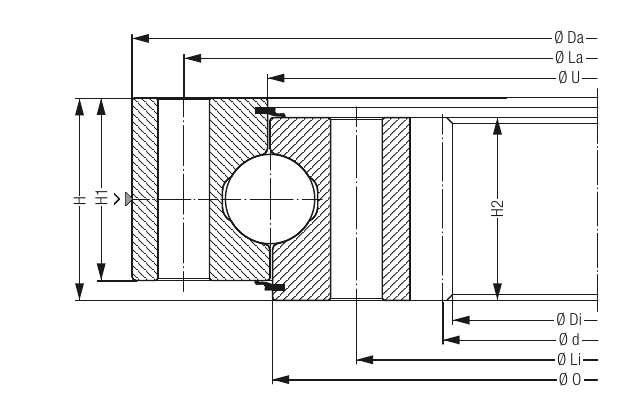

PRIUS BEARINGS KUD01255-025VJ15-900-000 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD01255-025VJ15-900-000
parameters

Key dimensions and load information for preliminary selection.

ModelKUD01255-025VJ15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)198 kg
Outside diameter Da (mm)1,355 mm
Inside diameter di (mm)1,110 mm
Ring height H (mm)80 mm
Outer pitch diameter (mm)1,255 mm
Inner pitch diameter (mm)1,194 mm
Mounting hole count42
Bolt diameter (mm)20 mm
Gear module10
Gear tooth count113
Basic static axial load rating C0a (kN)4,427 kN
Basic dynamic axial load rating Ca (kN)489 kN
Bearing typeKUD 025 internal gear
Outer reference ØO (mm)1,255 mm
Inner reference ØU (mm)1,255 mm
Outer ring height H1 (mm)71 mm
Inner ring height H2 (mm)54 mm
Outer mounting length La (mm)1,255 mm
Inner mounting length Li (mm)1,194 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD00855-025VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00955-025VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD01055-025VJ15-900-000View dimensions and engineering data →Liebherr · Slewing ring bearingKUD01155-025VJ15-900-000View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
