PRIUS BEARINGS · SLEWING RING BEARING

KUD01255
slewing ring bearing

KUD01255 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1398 mm, inside diameter 1155 mm, height 80 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01255

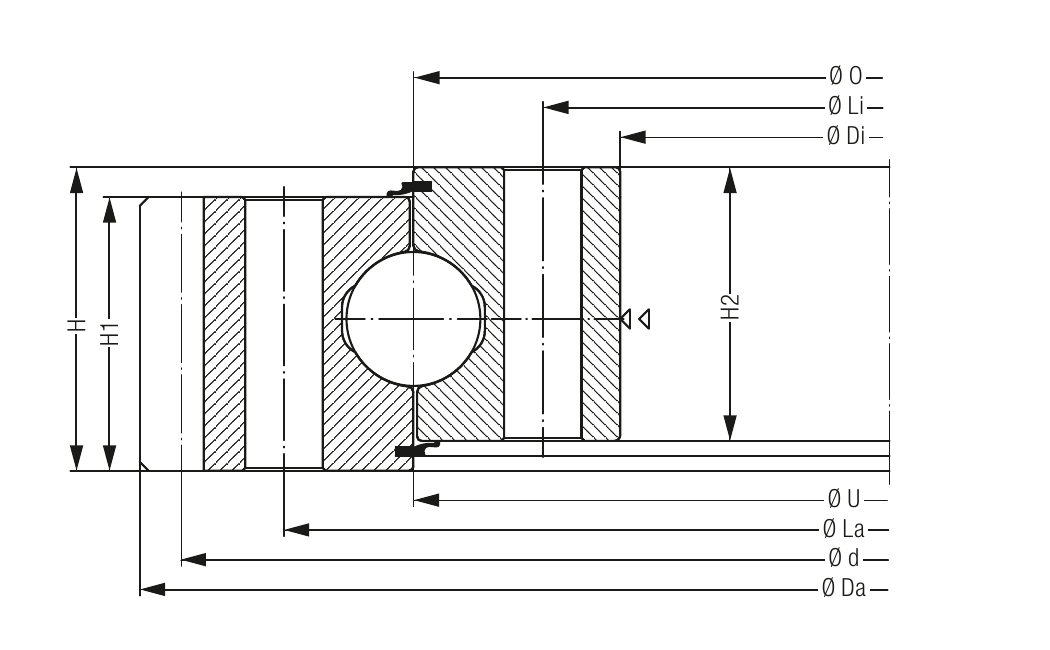

Liebherr catalogue section reference for KUD01255

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01255
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01255
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)204 kg
Outside diameter Da (mm)1,398 mm
Inside diameter di (mm)1,155 mm
Ring height H (mm)80 mm
Outer pitch diameter (mm)1,316 mm
Inner pitch diameter (mm)1,195 mm
Mounting hole count42
Mounting hole diameter (mm)20 mm
Gear module10
Gear tooth count138
Basic static axial load rating C0a (kN)4,427 kN
Basic dynamic axial load rating Ca (kN)489 kN
Bearing typeKUD 025 external gear
Outer reference ØO (mm)1,255 mm
Inner reference ØU (mm)1,255 mm
Outer ring height H1 (mm)71 mm
Inner ring height H2 (mm)54 mm
Outer mounting length La (mm)1,316 mm
Inner mounting length Li (mm)1,195 mm
Pinion tooth count z138
Pinion pitch diameter Pd (mm)1,380 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · External gear KUD 25 VAKUD01255-025VA15-900-000outside diameter 1398 mm, inside diameter 1155 mm, height 80 mm →Liebherr · Internal gear KUD 25 VJKUD01255-025VJ15-900-000outside diameter 1355 mm, inside diameter 1110 mm, height 80 mm →Liebherr · Slewing ring bearingKUD01355outside diameter 1498 mm, inside diameter 1255 mm, height 80 mm →Liebherr · Slewing ring bearingKUD01155outside diameter 1298 mm, inside diameter 1055 mm, height 80 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01255?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01255, provide the complete reference and suffix, confirm outside diameter 1398 mm, inside diameter 1155 mm, height 80 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
