Slewing Rings/Liebherr references/KUD01219← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD01219
slewing ring bearing

KUD01219 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1367.5 mm, inside diameter 1066.8 mm, height 88.9 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01219

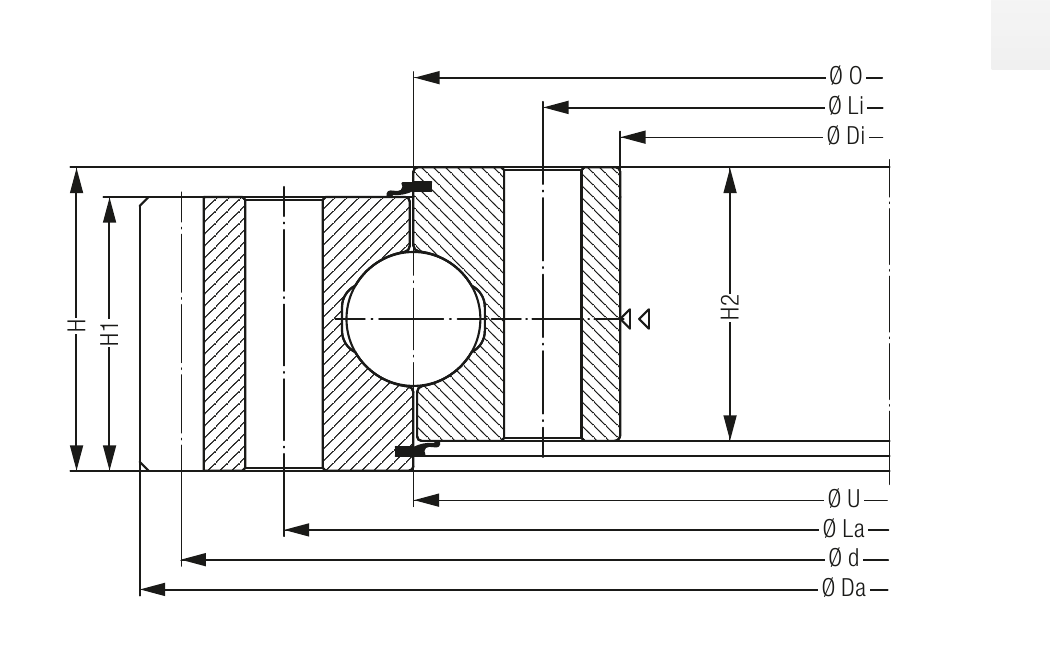

Liebherr catalogue section reference for KUD01219

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01219
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01219
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)300 kg
Outside diameter Da (mm)1,367.5 mm
Inside diameter di (mm)1,066.8 mm
Ring height H (mm)88.9 mm
Outer pitch diameter (mm)1,289.05 mm
Inner pitch diameter (mm)1,136.65 mm
Mounting hole count36 / 40
Bolt size3/4 in - 10 UNC
Gear module2.5
Gear tooth count133
Basic static axial load rating C0a (kN)4,427 kN
Basic dynamic axial load rating Ca (kN)493 kN
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD01155outside diameter 1298 mm, inside diameter 1055 mm, height 80 mm →Liebherr · Slewing ring bearingKUD01255outside diameter 1398 mm, inside diameter 1155 mm, height 80 mm →Liebherr · Slewing ring bearingKUD01372outside diameter 1519.9 mm, inside diameter 1219.2 mm, height 88.9 mm →Liebherr · Slewing ring bearingKUD01067outside diameter 1215.1 mm, inside diameter 914.4 mm, height 88.9 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01219?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01219, provide the complete reference and suffix, confirm outside diameter 1367.5 mm, inside diameter 1066.8 mm, height 88.9 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
