Slewing Rings/Kaydon references/MTE-470← View all models

PRIUS BEARINGS · SLEWING RING BEARING

MTE-470
slewing ring bearing

MTE-470 is listed as a Kaydon catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 26.9 in, inside diameter 18.5 in, height 2.375 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL MTE-470

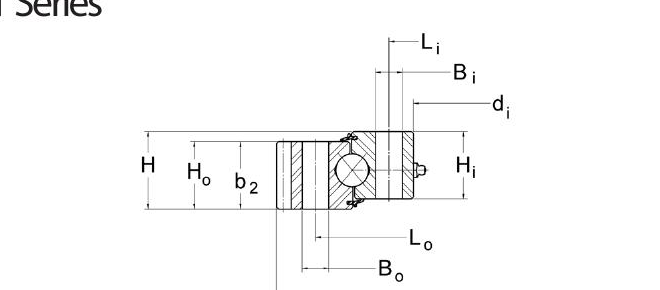

Kaydon catalogue section reference for MTE-470

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

MTE-470
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelMTE-470
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeSlewing ring bearing
Outside diameter OD (in)26.900 in
Inside diameter ID (in)18.500 in
Overall height HT (in)2.375 in
Reference height (in)2.063 in
Weight (lb)147 lb
Gear ConfigurationExternal gear
Outer hole circle OBC (in)24.500 in
Inner hole circle IBC (in)20.000 in
Mounting hole count18 / 24
Mounting hole diameter (mm)0.813 in
Moment rating (ft-lb)191,600 ft-lb
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Kaydon · Slewing ring bearingMTE-415outside diameter 24.65 in, inside diameter 16.25 in, height 2.375 in →Kaydon · Slewing ring bearingMTE-540outside diameter 29.65 in, inside diameter 21.25 in, height 2.375 in →Kaydon · Slewing ring bearingMTE-590outside diameter 33.534 in, inside diameter 23.125 in, height 2.875 in →Kaydon · Slewing ring bearingMTE-324outside diameter 20.486 in, inside diameter 12.75 in, height 2.062 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for MTE-470?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For MTE-470, provide the complete reference and suffix, confirm outside diameter 26.9 in, inside diameter 18.5 in, height 2.375 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
