Slewing Rings/PRIUS BEARINGS/32-50 4500/2-07590← View all models

PRIUS BEARINGS · SLEWING RING BEARING

32-50 4500/2-07590
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 32-50 4500/2-07590

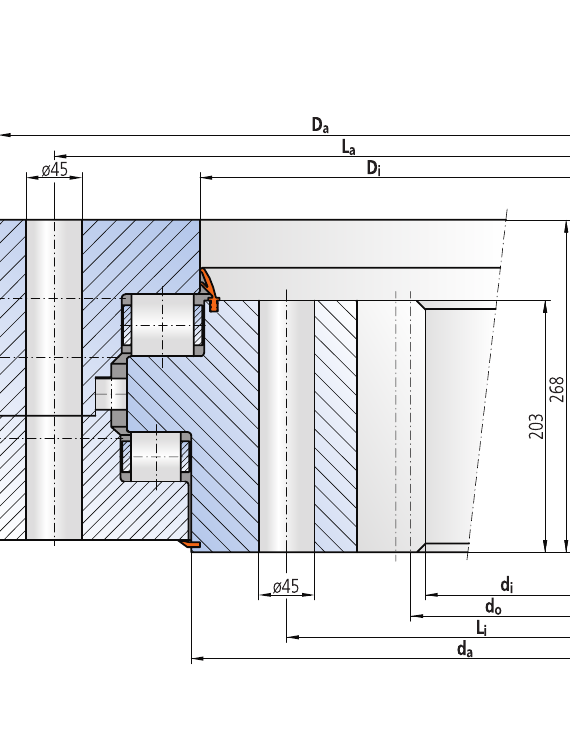

PRIUS BEARINGS 32-50 4500/2-07590 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

32-50 4500/2-07590
parameters

Key dimensions and load information for preliminary selection.

Model32-50 4500/2-07590
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)4765
Inside diameter di (mm)4080
Raceway diameter (mm)4440
Inner / outer reference (mm)4454
Ring height H (mm)7427
Outer pitch diameter (mm)4675
Inner pitch diameter (mm)4300
Mounting hole count68
Gear diameter (mm)4104
Gear module24
Gear tooth count171
Tooth correction-0.50
Tooth force, nominal (kN)440
Tooth force, maximum (kN)820
Basic static radial load rating C0r (kN)5825
Basic static axial load rating C0a (kN)52590
Static moment (kNm)28195
Basic dynamic radial load rating Cr (kN)2105
Basic dynamic axial load rating Ca (kN)9632
Dynamic moment (kNm)7118
