PRIUS BEARINGS · SLEWING RING BEARING

31-32 2240/2-07300
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 31-32 2240/2-07300

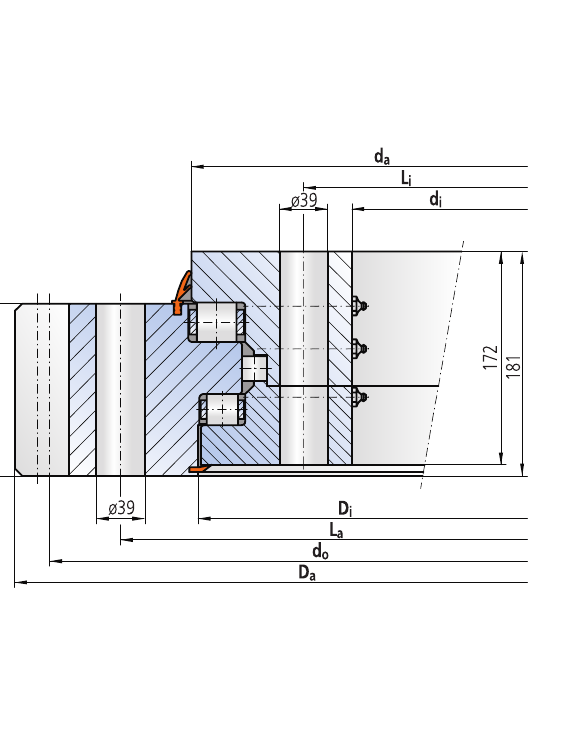

PRIUS BEARINGS 31-32 2240/2-07300 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

31-32 2240/2-07300
parameters

Key dimensions and load information for preliminary selection.

Model31-32 2240/2-07300
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2552.4
Inside diameter di (mm)2022
Raceway diameter (mm)2270
Inner / outer reference (mm)2281
Ring height H (mm)1975
Outer pitch diameter (mm)2395
Inner pitch diameter (mm)2100
Mounting hole count40
Gear diameter (mm)2502
Gear module18
Gear tooth count139
Tooth correction+0.50
Tooth force, nominal (kN)228
Tooth force, maximum (kN)401
Basic static radial load rating C0r (kN)1862
Basic static axial load rating C0a (kN)19352
Static moment (kNm)11565
Basic dynamic radial load rating Cr (kN)988
Basic dynamic axial load rating Ca (kN)3600
Dynamic moment (kNm)2561
