Slewing Rings/PRIUS BEARINGS/31-25 2240/2-06820← View all models

PRIUS BEARINGS · SLEWING RING BEARING

31-25 2240/2-06820
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 31-25 2240/2-06820

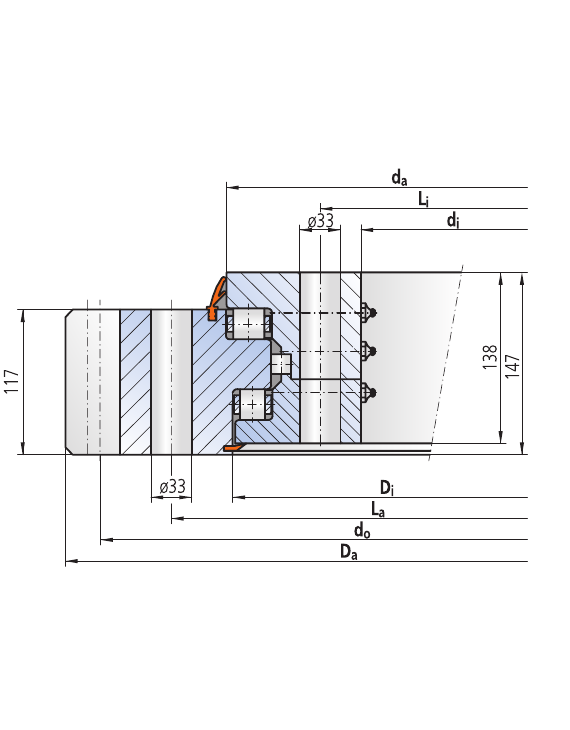

PRIUS BEARINGS 31-25 2240/2-06820 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

31-25 2240/2-06820
parameters

Key dimensions and load information for preliminary selection.

Model31-25 2240/2-06820
Brand / alternativePRIUS BEARINGS · Alternative for IMO
TypeSlewing ring bearing
Outside diameter Da (mm)2516.4
Inside diameter di (mm)2059
Raceway diameter (mm)2266
Inner / outer reference (mm)2276
Ring height H (mm)1378
Outer pitch diameter (mm)2366
Inner pitch diameter (mm)2125
Mounting hole count48
Gear diameter (mm)2466
Gear module18
Gear tooth count137
Tooth correction+0.50
Tooth force, nominal (kN)202
Tooth force, maximum (kN)358
Basic static radial load rating C0r (kN)1687
Basic static axial load rating C0a (kN)16185
Static moment (kNm)9475
Basic dynamic radial load rating Cr (kN)790
Basic dynamic axial load rating Ca (kN)2559
Dynamic moment (kNm)1889
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
