KF Series · Type A · Open · Angular contact
KF350AR0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 35.000 in, outside diameter of 36.500 in and radial section of 0.750 in. The listed configuration is Type A · Open · Angular contact.
OPEN / FAMILY PHOTOProduct-family photograph. Use the KF350AR0 reference dimensions and approved drawing to confirm the supplied configuration.

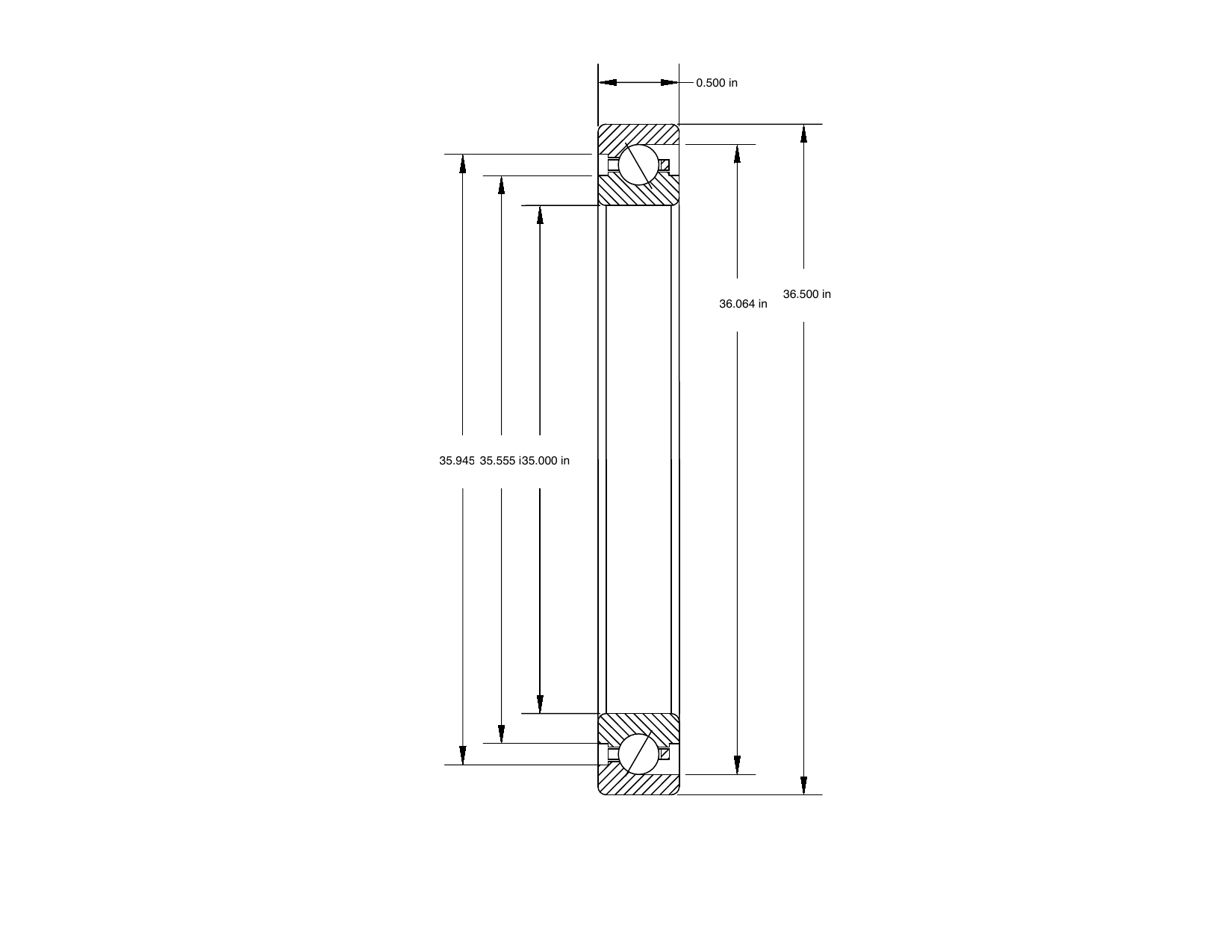

Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
Original catalogue table for this reference →
MODEL SELECTION & CROSS-REFERENCE
KF350AR0 belongs to the KF Series and has a bore of 35.000 in (889 mm), outside diameter of 36.500 in (927.1 mm) and radial section of 0.750 in. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Angular contact selection starts with axial load direction and the bearing arrangement. Provide the opposing bearing position, preload or clearance requirement, shaft speed and temperature so the pair and fits can be reviewed.
This reference is open. Include the housing protection and lubrication method in the enquiry, especially for dust, moisture or washdown exposure.
The reference dynamic radial capacity is 11,382 lb; static radial capacity is 48,380 lb. The listed dynamic thrust capacity is 32,580 lb. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
FREQUENT QUESTIONS
Send the complete KF350AR0 reference, original drawing and required quantity. We review the 35.000 in bore, 36.500 in outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Angular contact selection starts with axial load direction and the bearing arrangement. Provide the opposing bearing position, preload or clearance requirement, shaft speed and temperature so the pair and fits can be reviewed. KF350AR0 is listed as type a · open · angular contact.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
INDEPENDENT ALTERNATIVE MANUFACTURER
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Specify the required material, separator, tolerance class, lubricant and operating temperature with your enquiry. Dimensions and load ratings are catalogue cross-reference data, not a guarantee of PRIUS product performance. Confirm the drawing, combined loads, clearance and application with our engineering team before ordering. Original catalogue reference
Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
