Thin Section Bearings/KF Series/KF100AR0

KF Series · Type A · Open · Angular contact

KF100AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KF100AR0 open thin section bearingOPEN / KF100AR0

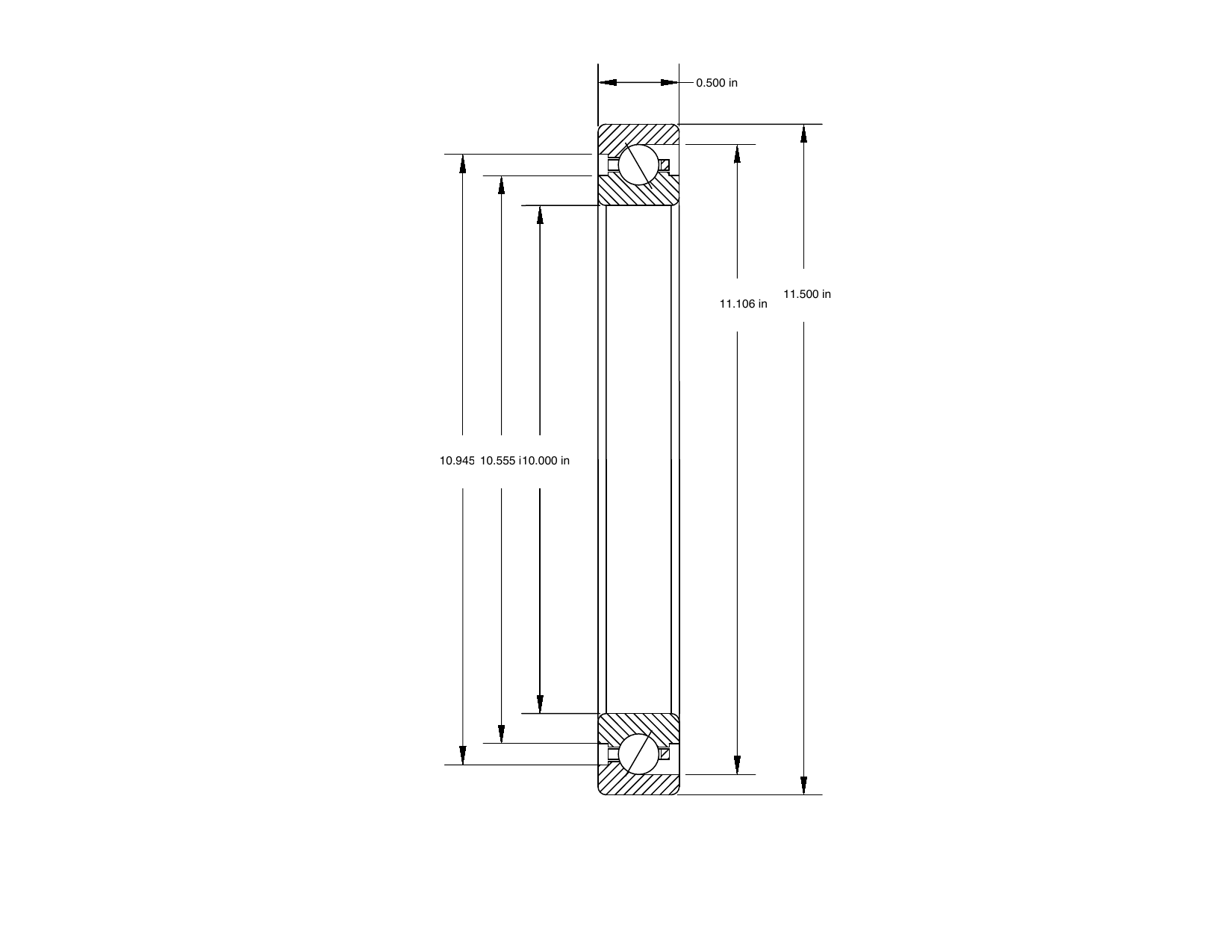

PRIUS BEARINGSMECHANICAL DRAWING · KF100AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KF100AR0 dimensioned mechanical drawing
PART NUMBERKF100AR0
BORE / d10.000 in
O.D. / D11.500 in
WIDTH / B0.500 in
L1 / L2 / L310.555 in / 10.945 in / 11.106 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD5,890
STATIC RADIAL LOAD14,420
DYNAMIC THRUST LOAD14,530
STATIC THRUST LOAD41,620
WEIGHT0.4 lb

TECHNICAL DATA

Specification
at a glance.

Bore10.000 in
Outside diameter11.500 in
Radial section0.500 in
L1 land diameter10.555 in
L2 land diameter10.945 in
L3 counterbore11.106 in
Dynamic radial capacity5,890
Dynamic thrust capacity14,530
Static radial capacity14,420
Static thrust capacity41,620
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.4 lb
