KD Series · Type A · Open · Angular contact
KD080AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

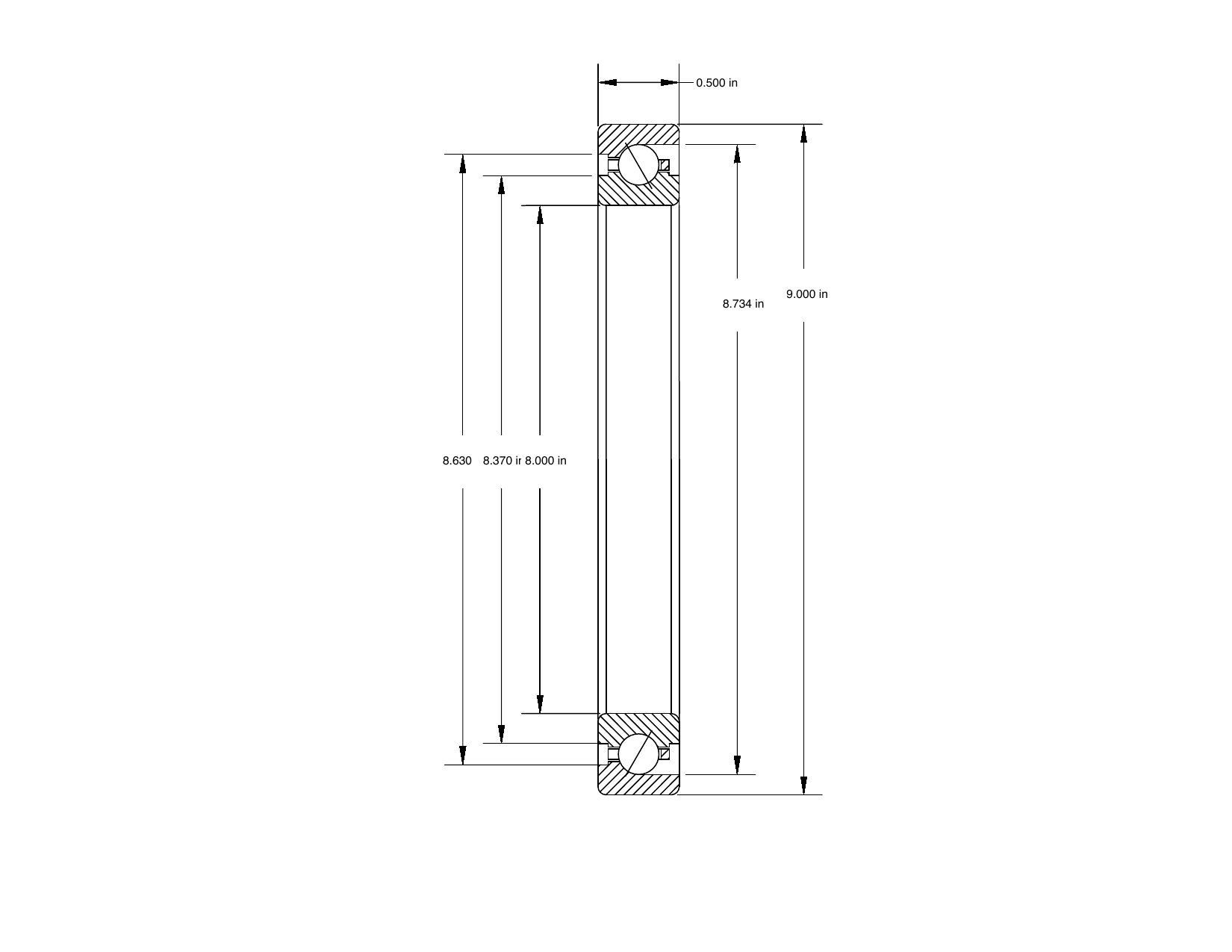

OPEN / KD080AR0PRIUS BEARINGSMECHANICAL DRAWING · KD080AR0UNITS: inch · SCALE: NTS
PART NUMBERKD080AR0
BORE / d8.000 in
O.D. / D9.000 in
WIDTH / B0.500 in
L1 / L2 / L38.370 in / 8.630 in / 8.734 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD2,627
STATIC RADIAL LOAD6,710
DYNAMIC THRUST LOAD6,510
STATIC THRUST LOAD19,380
WEIGHT0.1 lb
TECHNICAL DATA
Specification
at a glance.
Bore8.000 in
Outside diameter9.000 in
Radial section0.500 in
L1 land diameter8.370 in
L2 land diameter8.630 in
L3 counterbore8.734 in
Dynamic radial capacity2,627
Dynamic thrust capacity6,510
Static radial capacity6,710
Static thrust capacity19,380
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.1 lb
