KC Series · Type A · Open · Angular contact
KC300AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

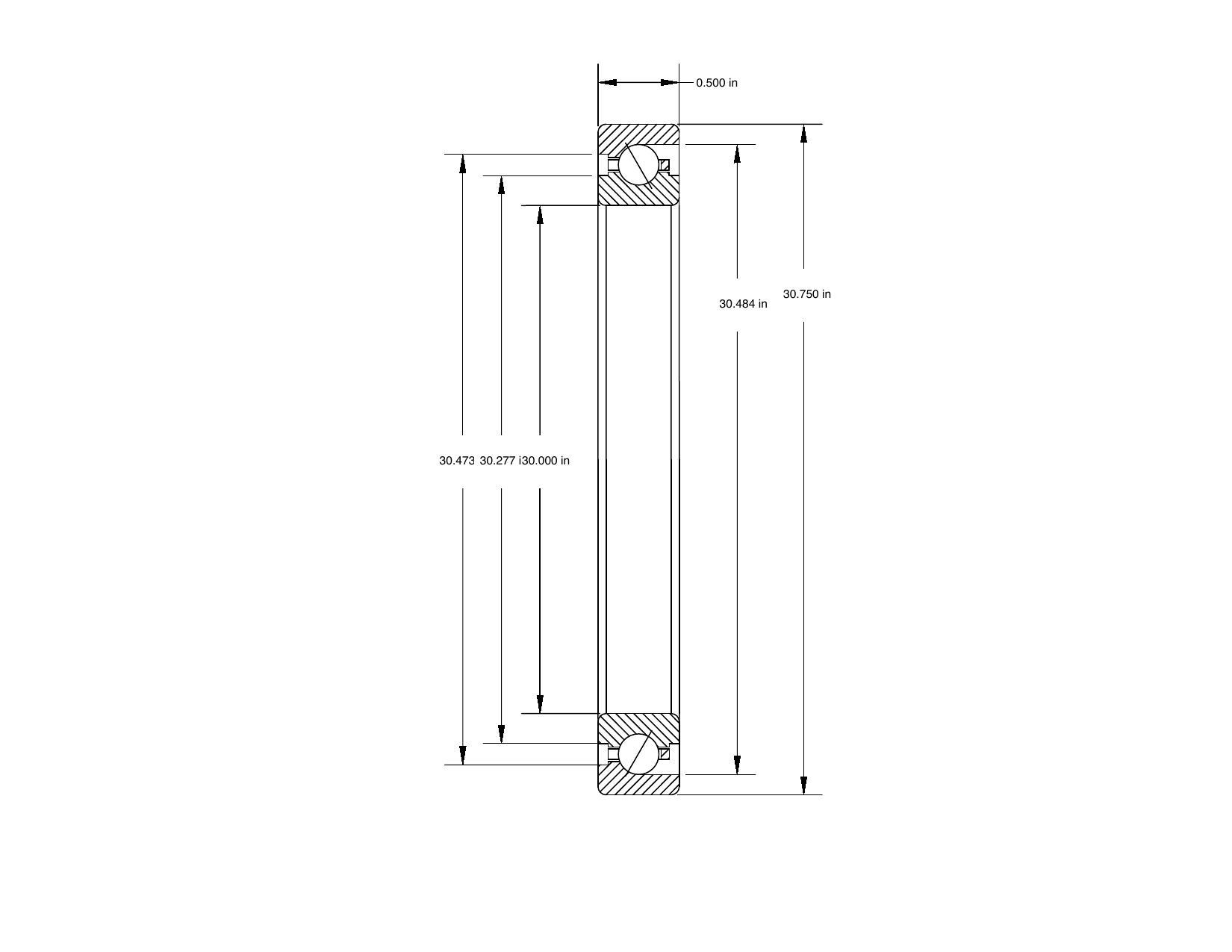

OPEN / KC300AR0PRIUS BEARINGSMECHANICAL DRAWING · KC300AR0UNITS: inch · SCALE: NTS
PART NUMBERKC300AR0
BORE / d30.000 in
O.D. / D30.750 in
WIDTH / B0.500 in
L1 / L2 / L330.277 in / 30.473 in / 30.484 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD3,561
STATIC RADIAL LOAD17,960
DYNAMIC THRUST LOAD10,160
STATIC THRUST LOAD51,850
WEIGHT0.3 lb
TECHNICAL DATA
Specification
at a glance.
Bore30.000 in
Outside diameter30.750 in
Radial section0.500 in
L1 land diameter30.277 in
L2 land diameter30.473 in
L3 counterbore30.484 in
Dynamic radial capacity3,561
Dynamic thrust capacity10,160
Static radial capacity17,960
Static thrust capacity51,850
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.3 lb
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for KC300AR0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
