Thin Section Bearings/KB Series/KB060AR0

KB Series · Type A · Open

KB060AR0
thin section bearing

Higher-capacity thin section bearing for industrial motion, robotics and rotary positioning.

Request a quote →Back to all models
PRIUS BEARINGS KB060AR0 open thin section bearingOPEN / KB060AR0

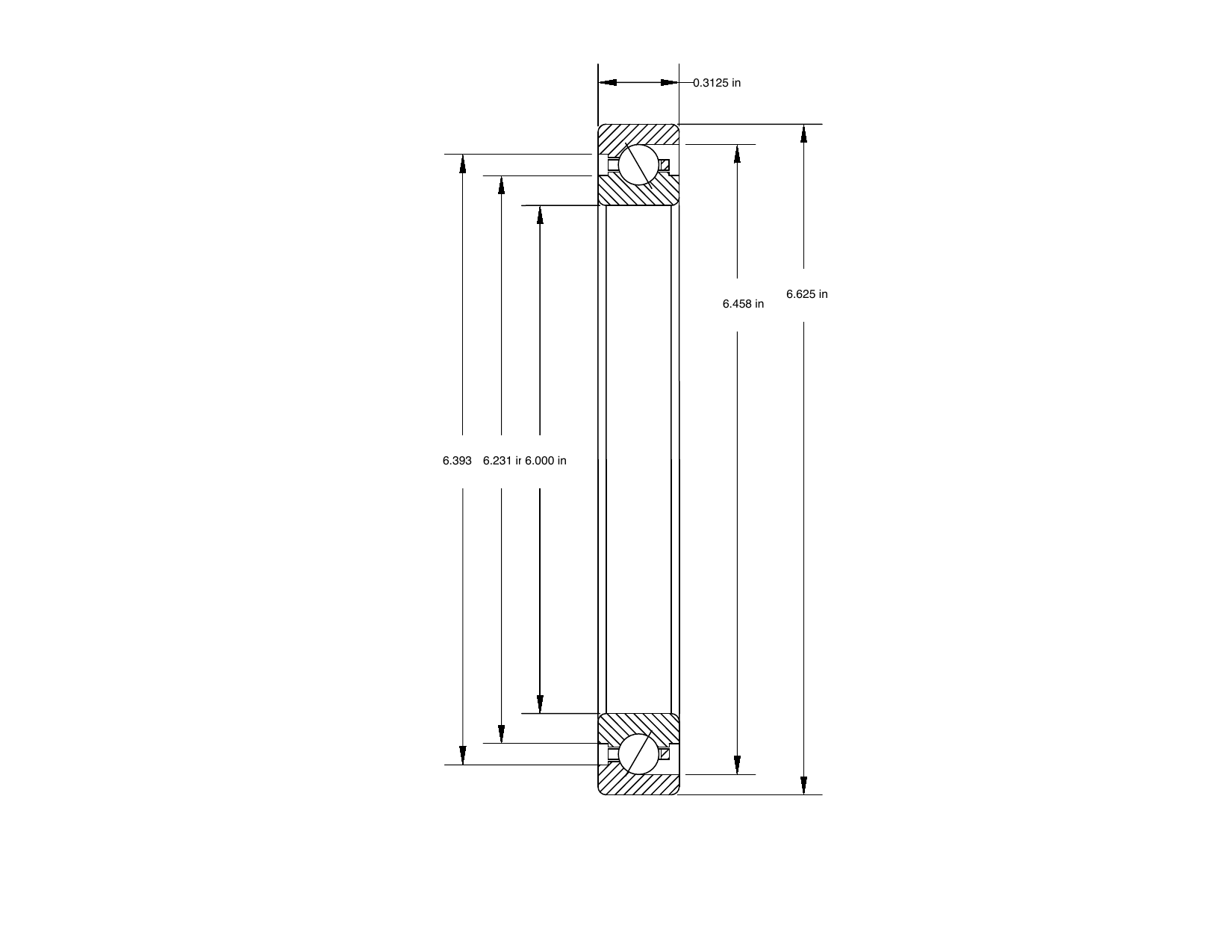

PRIUS BEARINGSMECHANICAL DRAWING · KB060AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KB060AR0 dimensioned mechanical drawing
PART NUMBERKB060AR0
BORE / d6.000 in
O.D. / D6.625 in
WIDTH / B0.3125 in
L1 / L2 / L36.231 in / 6.393 in / 6.458 in
TYPEType A · Open
DYNAMIC RADIAL LOAD1,088 lb
STATIC RADIAL LOAD2,990 lb
DYNAMIC THRUST LOAD2,710 lb
STATIC THRUST LOAD8,630 lb
WEIGHT0.44 lb

TECHNICAL DATA

Specification
at a glance.

Bore6.000 in
Outside diameter6.625 in
Radial section0.3125 in
L1 land diameter6.231 in
L2 land diameter6.393 in
L3 counterbore6.458 in
Dynamic radial capacity1,088 lb
Dynamic thrust capacity2,710 lb
Static radial capacity2,990 lb
Static thrust capacity8,630 lb
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.44 lb
