Thin Section Bearings/8 mm Series/K34008XP0

8 mm Series · Type X · Sealed · Four-point contact

K34008XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K34008XP0 sealed thin section bearingSEALED / K34008XP0

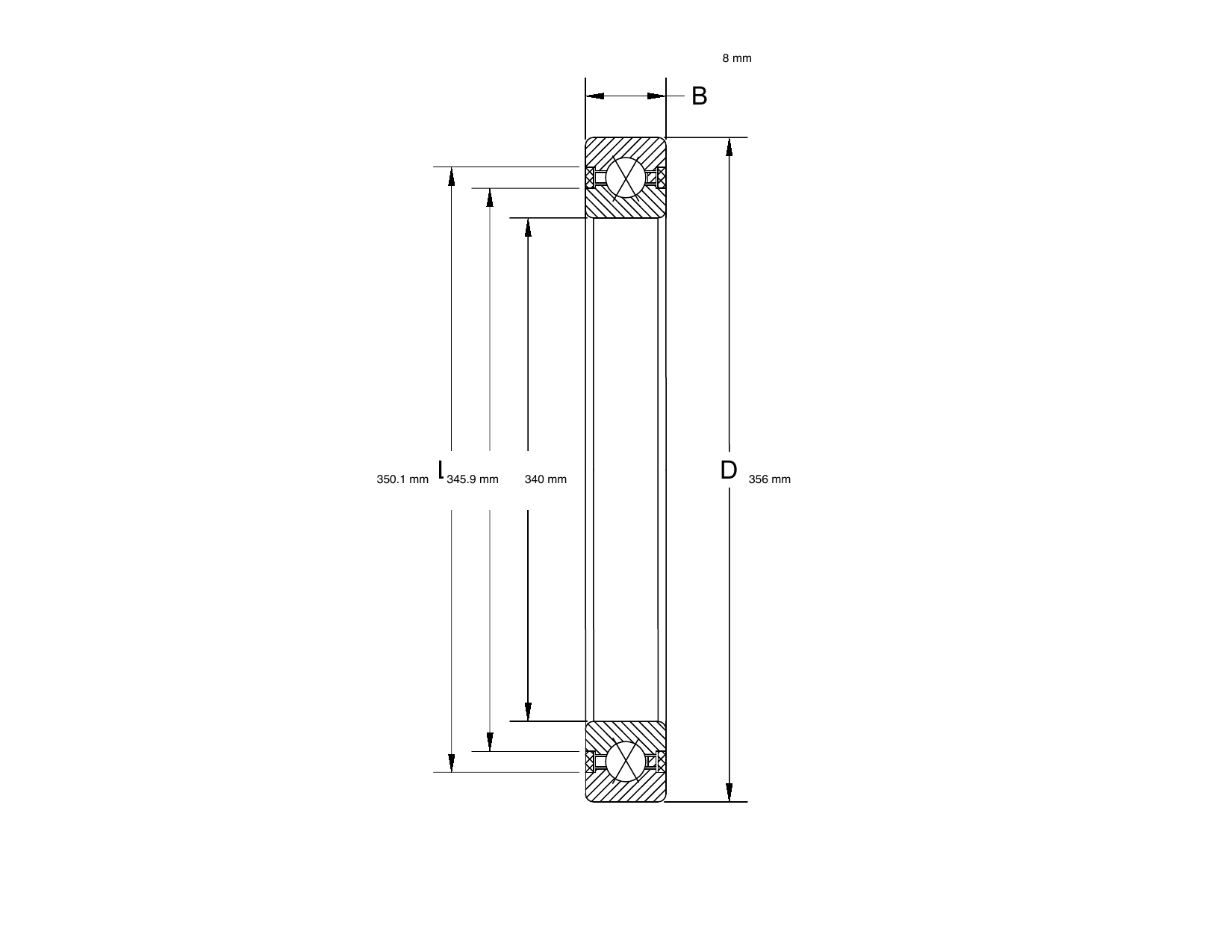

PRIUS BEARINGSMECHANICAL DRAWING · K34008XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K34008XP0 dimensioned mechanical drawing
PART NUMBERK34008XP0
BORE / d340 mm
O.D. / D356 mm
WIDTH / B8 mm
L1 / L2 / L3345.9 mm / 350.1 mm / —
TYPEType X · Sealed · Four-point contact
DYNAMIC RADIAL LOAD13239
STATIC RADIAL LOAD84808
DYNAMIC THRUST LOAD22114
STATIC THRUST LOAD5859
WEIGHT0.42 kg

TECHNICAL DATA

Specification
at a glance.

Bore340 mm
Outside diameter356 mm
Radial section8 mm
L1 land diameter345.9 mm
L2 land diameter350.1 mm
L3 counterbore—
Dynamic radial capacity13239
Dynamic thrust capacity22114
Static radial capacity84808
Static thrust capacity5859
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.42 kg
