Thin Section Bearings/13 mm Series/K25013XP0

13 mm Series · Type X · Open · Four-point contact

K25013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models

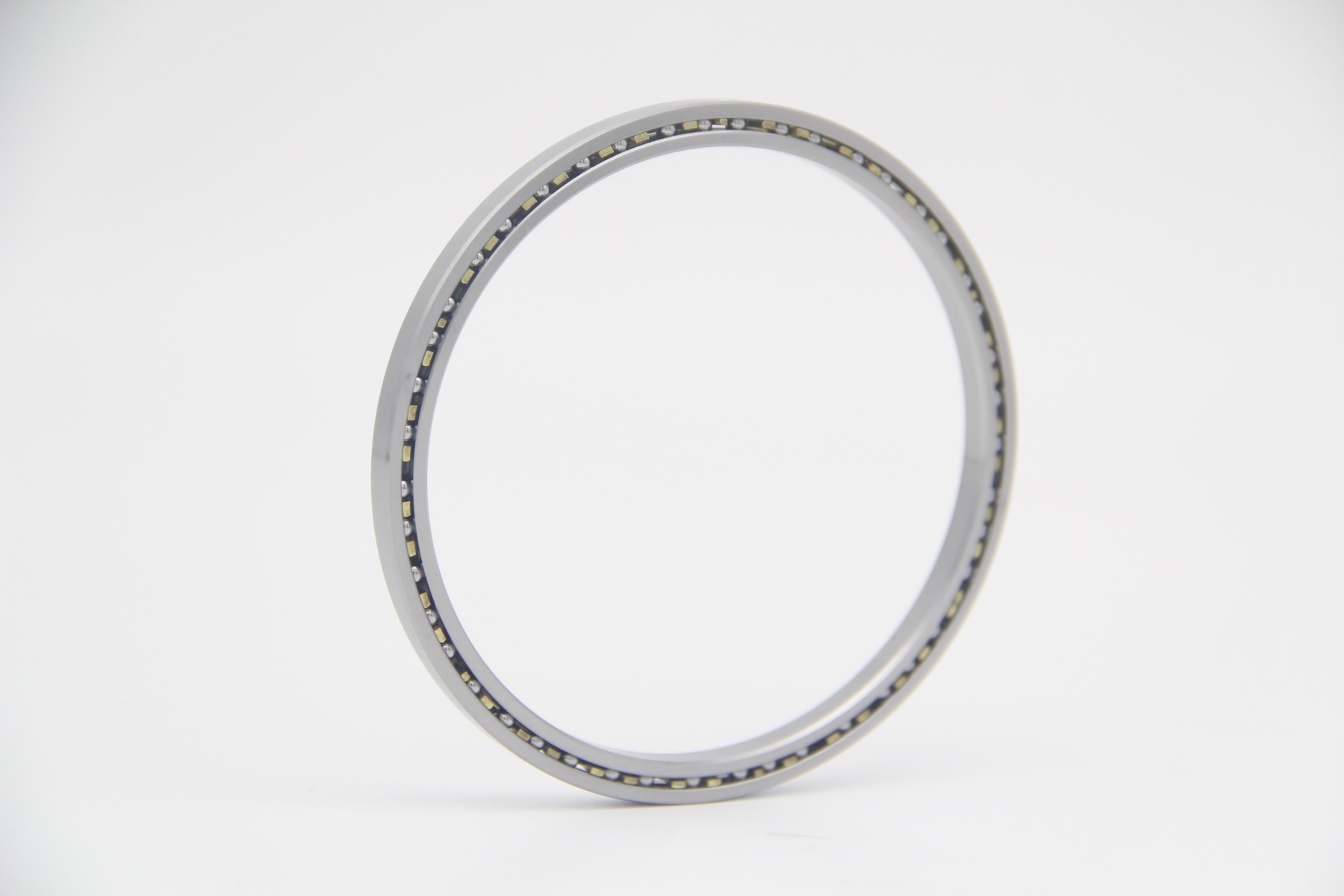

PRIUS BEARINGS K25013XP0 open thin section bearingOPEN / K25013XP0

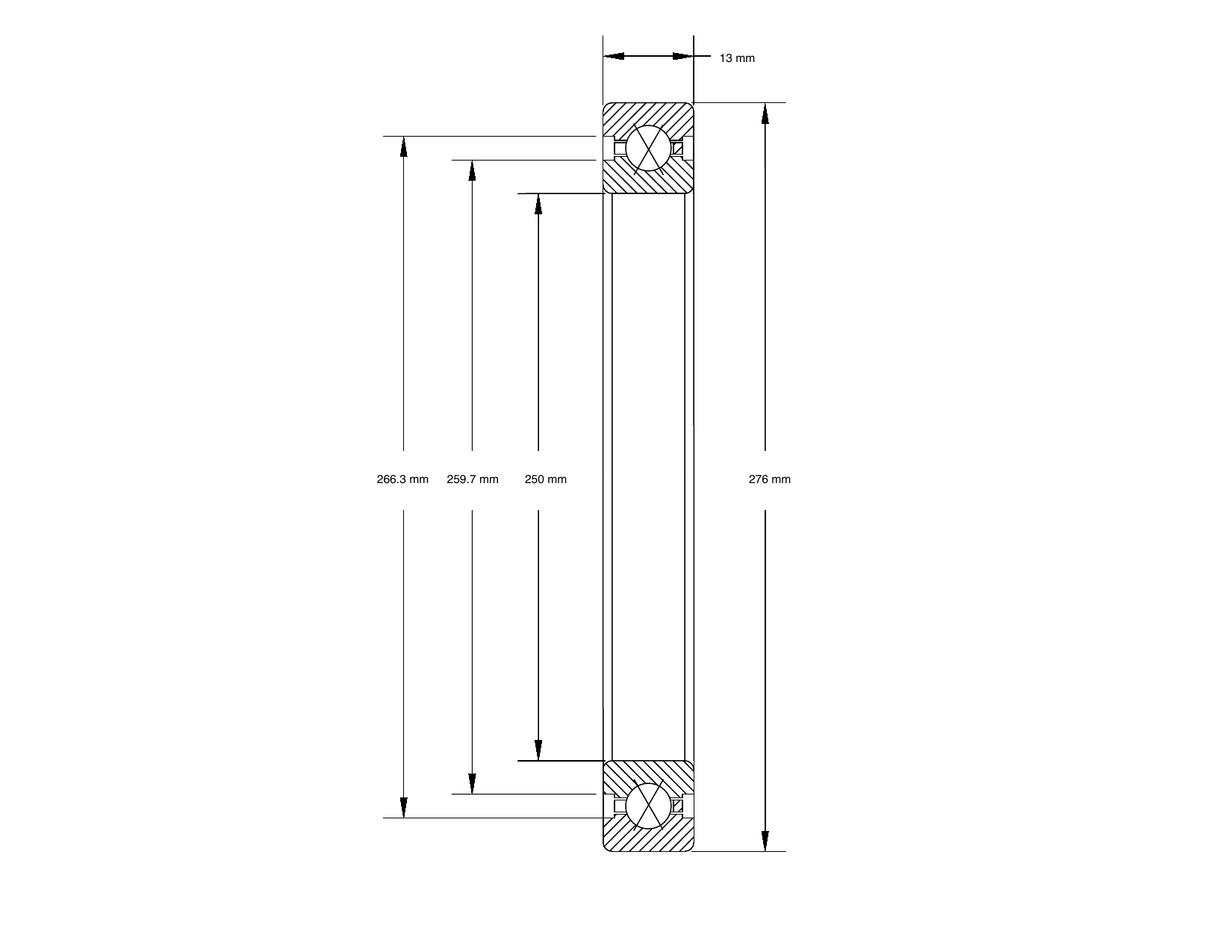

PRIUS BEARINGSMECHANICAL DRAWING · K25013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K25013XP0 dimensioned mechanical drawing
PART NUMBERK25013XP0
BORE / d250 mm
O.D. / D276 mm
WIDTH / B13 mm
L1 / L2 / L3259.7 mm / 266.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD20780
STATIC RADIAL LOAD98253
DYNAMIC THRUST LOAD33372
STATIC THRUST LOAD5168
WEIGHT0.77 kg

TECHNICAL DATA

Specification
at a glance.

Bore250 mm
Outside diameter276 mm
Radial section13 mm
L1 land diameter259.7 mm
L2 land diameter266.3 mm
L3 counterbore—
Dynamic radial capacity20780
Dynamic thrust capacity33372
Static radial capacity98253
Static thrust capacity5168
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.77 kg
