8 mm Series · Type C · Open · Radial contact
K19008CP0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 190 mm, outside diameter of 206 mm and radial section of 8 mm. The listed configuration is Type C · Open · Radial contact.
OPEN / FAMILY PHOTOProduct-family photograph. Use the K19008CP0 reference dimensions and approved drawing to confirm the supplied configuration.

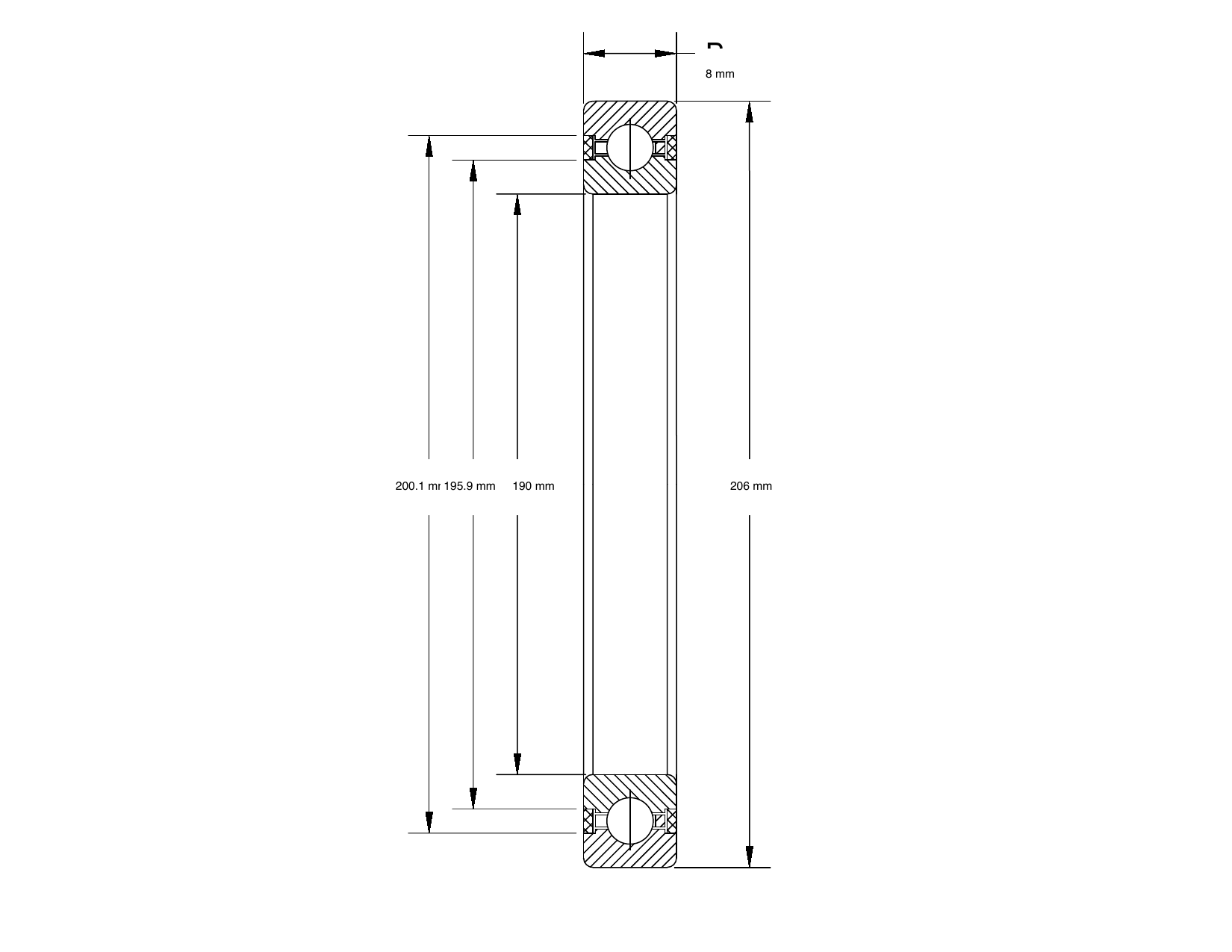

Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
Original catalogue table for this reference →
MODEL SELECTION & CROSS-REFERENCE
K19008CP0 belongs to the 8 mm Series and has a bore of 190 mm , outside diameter of 206 mm and radial section of 8 mm. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type.
This reference is open. Include the housing protection and lubrication method in the enquiry, especially for dust, moisture or washdown exposure.
The reference dynamic radial capacity is 7110 N; static radial capacity is 19064 N. No dynamic thrust rating is listed for this reference. Send the axial load separately for engineering review. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
These references match bore, outside diameter and radial section. Contact geometry, land dimensions, sealing and ratings may differ; interchangeability needs a drawing review.
| Reference | Contact / sealing | Dynamic radial |
|---|---|---|
| K19008CP0 (this page) | Type C · Open · Radial contact | 7110 N |
| K19008XP0 | Type X · Open · Four-point contact | 9444 N |
FREQUENT QUESTIONS
Send the complete K19008CP0 reference, original drawing and required quantity. We review the 190 mm bore, 206 mm outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type. K19008CP0 is listed as type c · open · radial contact.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
INDEPENDENT ALTERNATIVE MANUFACTURER
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Specify the required material, separator, tolerance class, lubricant and operating temperature with your enquiry. Dimensions and load ratings are catalogue cross-reference data, not a guarantee of PRIUS product performance. Confirm the drawing, combined loads, clearance and application with our engineering team before ordering. Original catalogue reference
Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
