Thin Section Bearings/13 mm Series/K15013XP0

13 mm Series · Type X · Open · Four-point contact

K15013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K15013XP0 open thin section bearingOPEN / K15013XP0

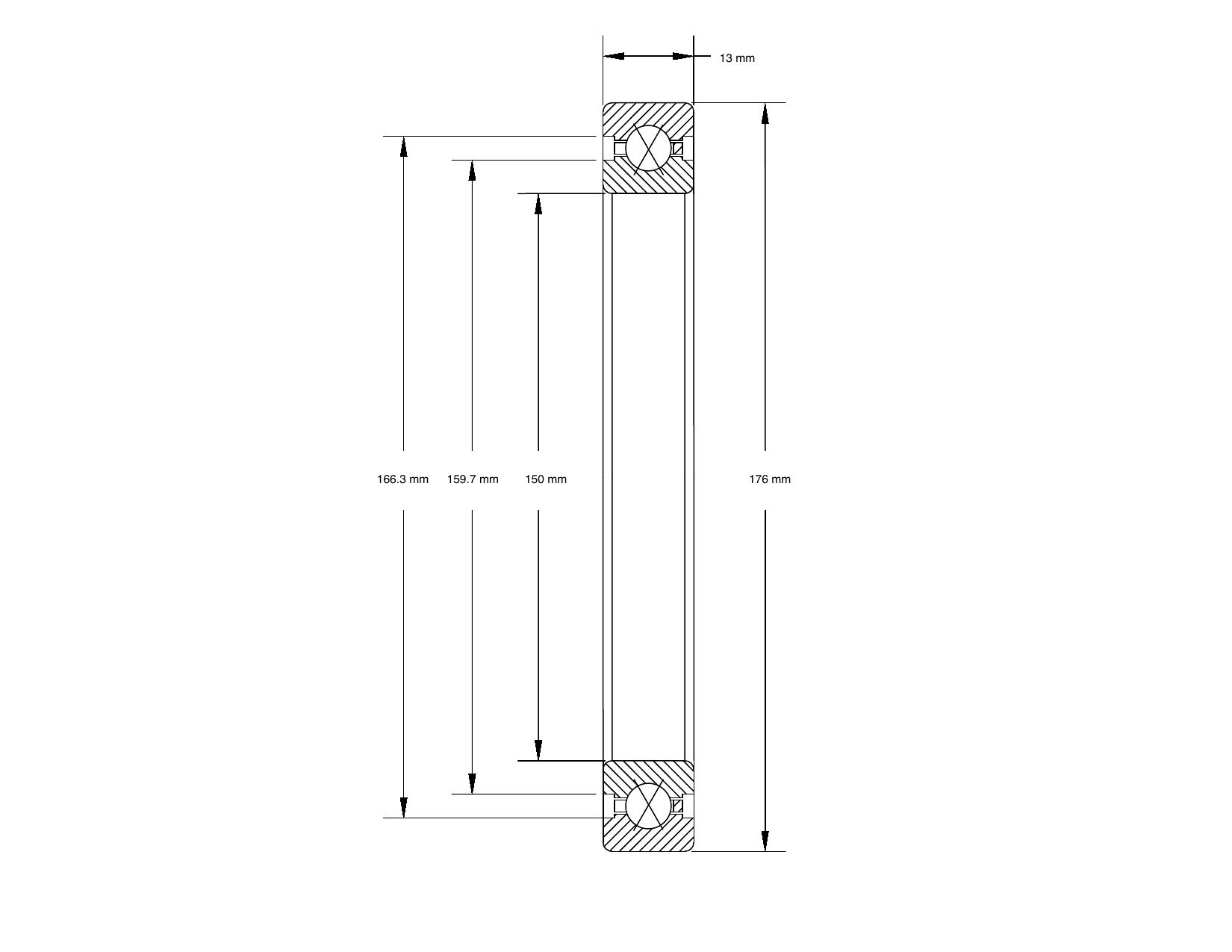

PRIUS BEARINGSMECHANICAL DRAWING · K15013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K15013XP0 dimensioned mechanical drawing
PART NUMBERK15013XP0
BORE / d150 mm
O.D. / D176 mm
WIDTH / B13 mm
L1 / L2 / L3159.7 mm / 166.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD15612
STATIC RADIAL LOAD60223
DYNAMIC THRUST LOAD24075
STATIC THRUST LOAD1963
WEIGHT0.48 kg

TECHNICAL DATA

Specification
at a glance.

Bore150 mm
Outside diameter176 mm
Radial section13 mm
L1 land diameter159.7 mm
L2 land diameter166.3 mm
L3 counterbore—
Dynamic radial capacity15612
Dynamic thrust capacity24075
Static radial capacity60223
Static thrust capacity1963
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.48 kg
