Thin Section Bearings/13 mm Series/K12013XP0

13 mm Series · Type X · Open · Four-point contact

K12013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K12013XP0 open thin section bearingOPEN / K12013XP0

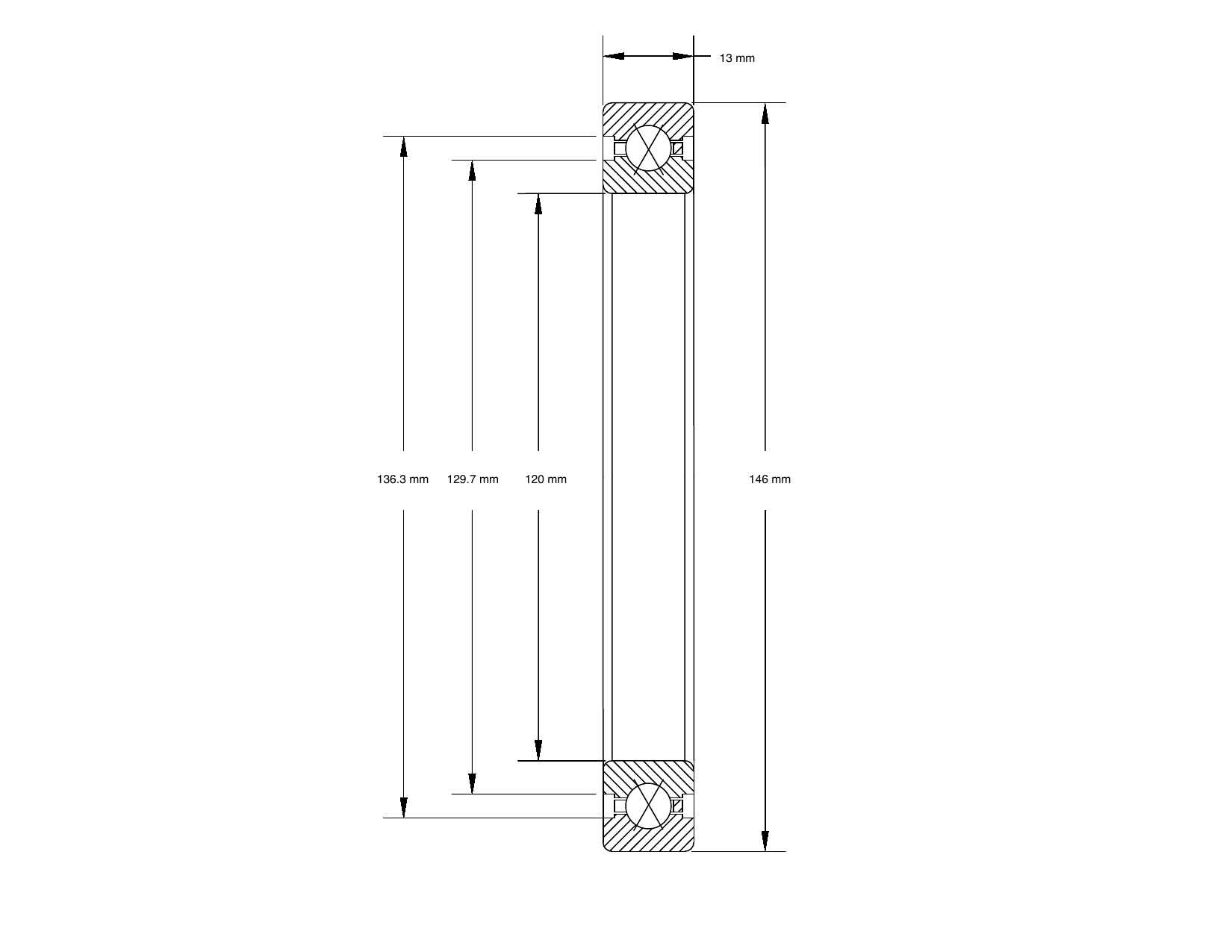

PRIUS BEARINGSMECHANICAL DRAWING · K12013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K12013XP0 dimensioned mechanical drawing
PART NUMBERK12013XP0
BORE / d120 mm
O.D. / D146 mm
WIDTH / B13 mm
L1 / L2 / L3129.7 mm / 136.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD13876
STATIC RADIAL LOAD49131
DYNAMIC THRUST LOAD21025
STATIC THRUST LOAD1307
WEIGHT0.40 kg

TECHNICAL DATA

Specification
at a glance.

Bore120 mm
Outside diameter146 mm
Radial section13 mm
L1 land diameter129.7 mm
L2 land diameter136.3 mm
L3 counterbore—
Dynamic radial capacity13876
Dynamic thrust capacity21025
Static radial capacity49131
Static thrust capacity1307
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.40 kg
