Thin Section Bearings/13 mm Series/K02513CP0

13 mm Series · Type C · Open · Radial contact

K02513CP0
thin section bearing

Metric radial contact thin section bearing with a deeper section for higher capacity.

Request a quote →Back to all models
PRIUS BEARINGS K02513CP0 open thin section bearingOPEN / K02513CP0

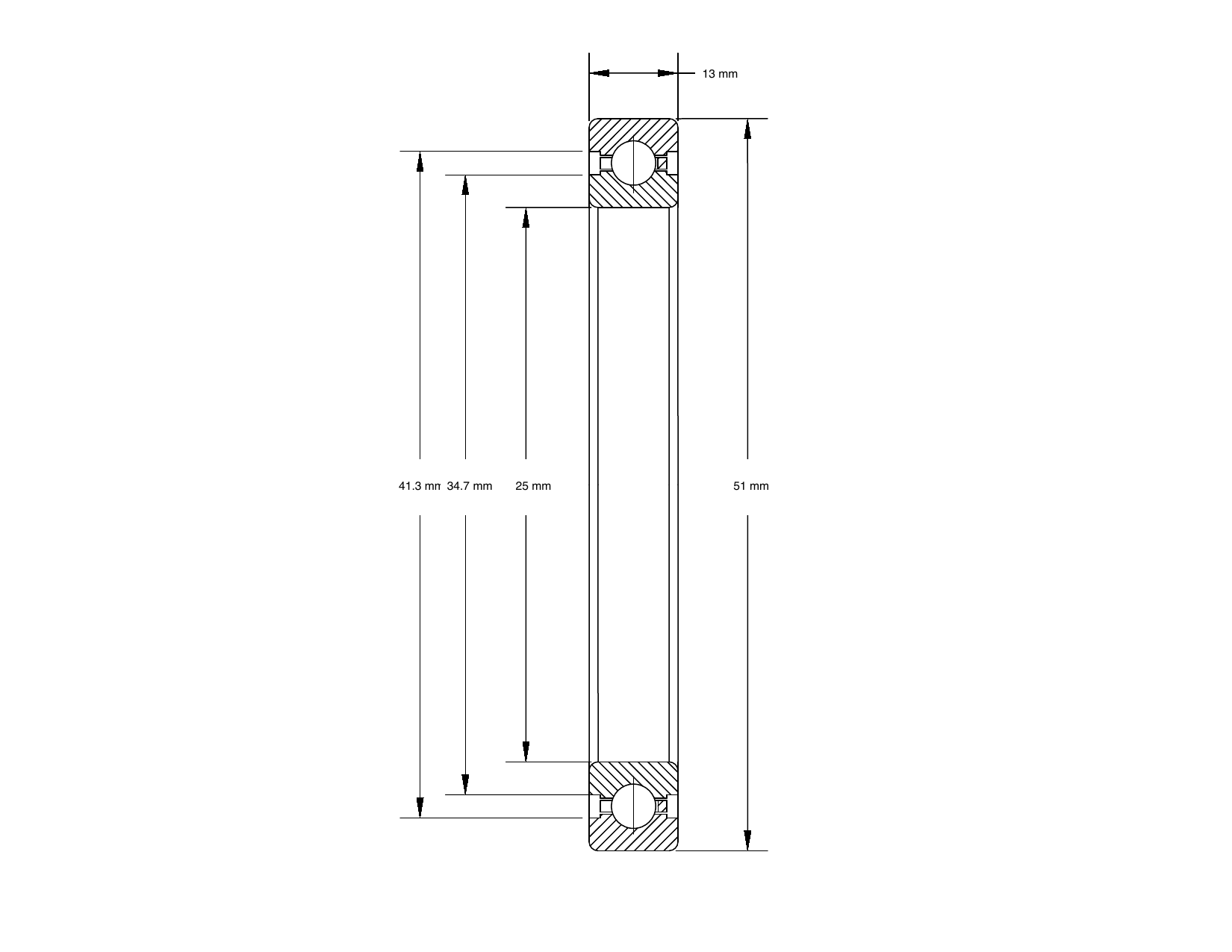

PRIUS BEARINGSMECHANICAL DRAWING · K02513CP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K02513CP0 dimensioned mechanical drawing
PART NUMBERK02513CP0
BORE / d25 mm
O.D. / D51 mm
WIDTH / B13 mm
L1 / L2 / L334 mm / 41 mm / —
TYPEType C · Open · Radial contact
DYNAMIC RADIAL LOAD5247 N
STATIC RADIAL LOAD5070 N
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.11 kg

TECHNICAL DATA

Specification
at a glance.

Bore25 mm
Outside diameter51 mm
Radial section13 mm
L1 land diameter34 mm
L2 land diameter41 mm
L3 counterbore—
Dynamic radial capacity5247 N
Dynamic thrust capacityN/A
Static radial capacity5070 N
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.11 kg
