Thin Section Bearings/JU Series/JU050XP0

JU Series · Type X · Sealed · Four-point contact

JU050XP0
thin section bearing

Sealed four-point contact bearing for protected combined-load applications.

Request a quote →Back to all models
PRIUS BEARINGS JU050XP0 sealed thin section bearingSEALED / JU050XP0

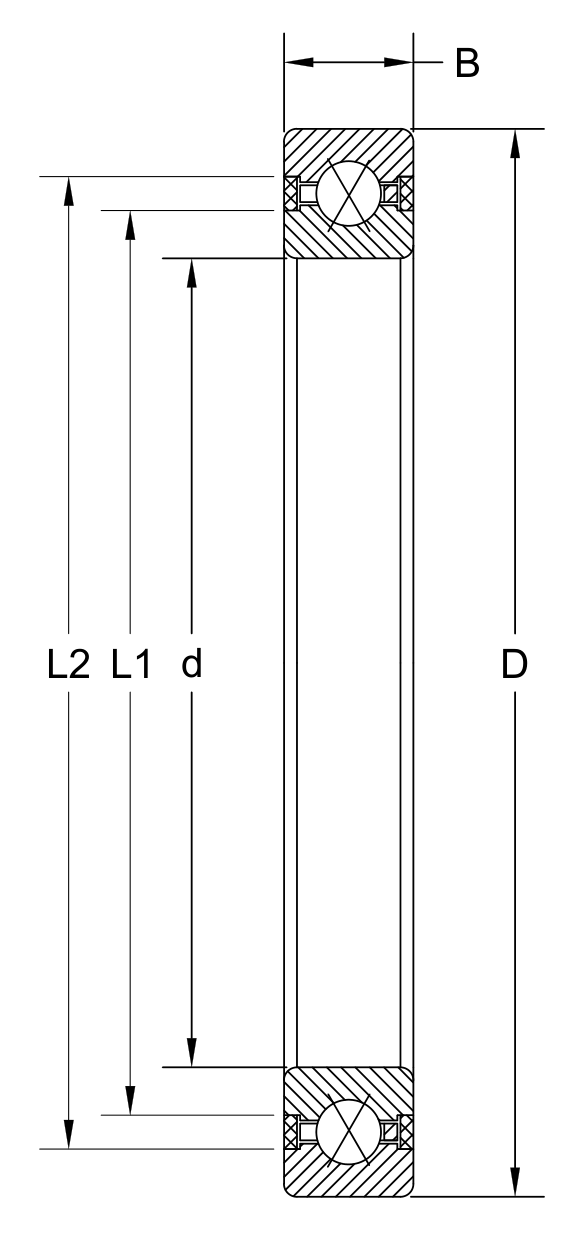

PRIUS BEARINGSMECHANICAL DRAWING · JU050XP0UNITS: inch · SCALE: NTS
PRIUS BEARINGS JU050XP0 dimensioned mechanical drawing
PART NUMBERJU050XP0
BORE / d5.000 in
O.D. / D5.750 in
WIDTH / B0.250 in
L1 / L2 / L35.150 in / 5.543 in / —
TYPEType X · Sealed · Four-point contact
DYNAMIC RADIAL LOAD1,600
STATIC RADIAL LOAD2,590
DYNAMIC THRUST LOAD2,540
STATIC THRUST LOAD6,460
WEIGHT0.3 lb

TECHNICAL DATA

Specification
at a glance.

Bore5.000 in
Outside diameter5.750 in
Radial section0.250 in
L1 land diameter5.150 in
L2 land diameter5.543 in
L3 counterbore—
Dynamic radial capacity1,600
Dynamic thrust capacity2,540
Static radial capacity2,590
Static thrust capacity6,460
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.3 lb
