Slewing Rings/SKF references/RKS.427020101001← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.427020101001
slewing ring bearing

RKS.427020101001 is listed as a SKF catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1604 mm, inside diameter 1205 mm, height 130 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.427020101001 external gear slewing ring bearingEXTERNAL GEAR / RKS.427020101001

DIMENSIONAL REFERENCE

MODEL RKS.427020101001

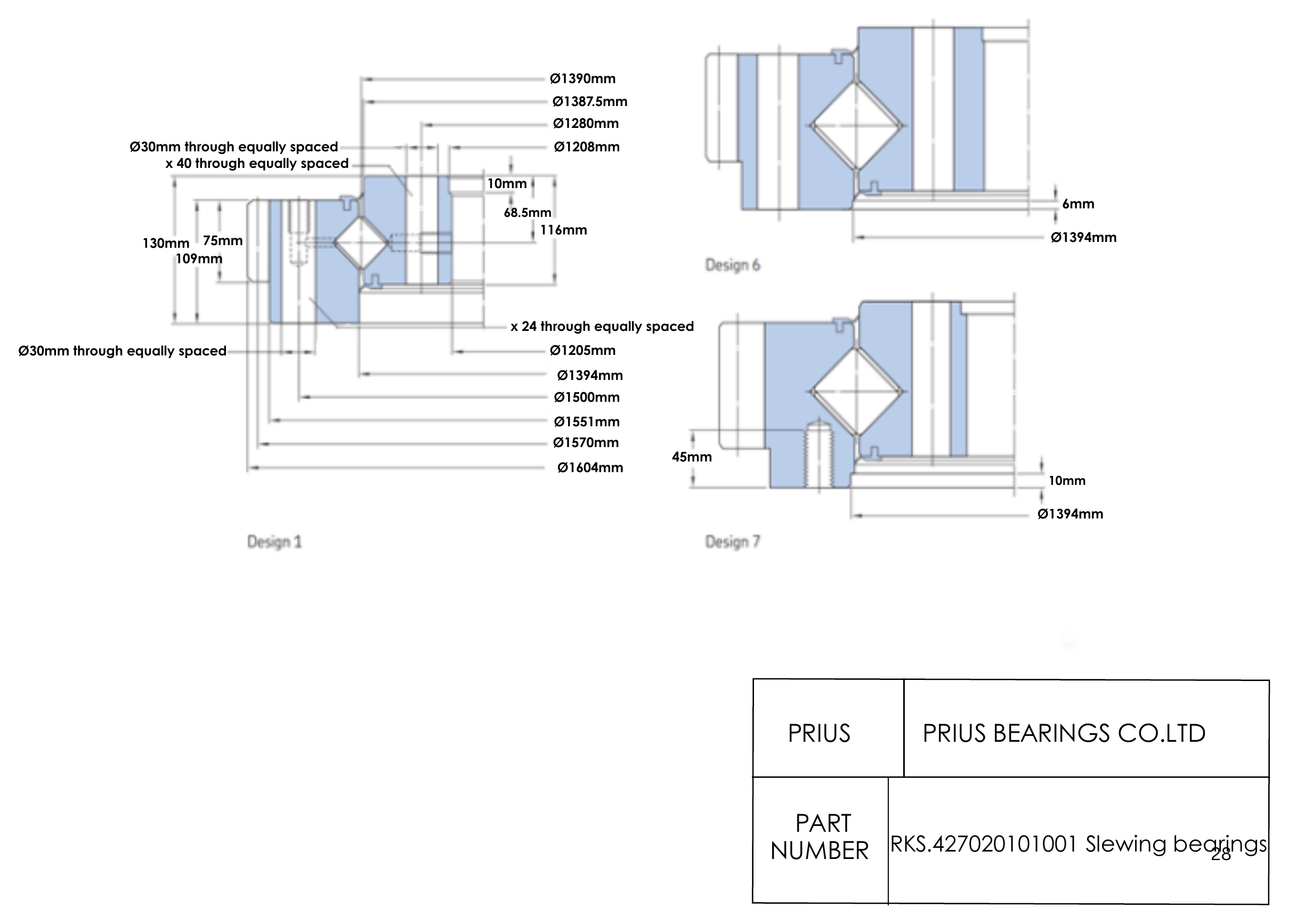

SKF RKS.427020101001 catalogue drawing reference

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

RKS.427020101001
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelRKS.427020101001
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSKF Cross-roller · External gear
Outside diameter Da (mm)1604
Inside diameter di (mm)1205
Ring height H (mm)130
Mounting hole count40
Mounting hole diameter (mm)30
Shoulder height H1 (mm)68.5
Outer reference D1 (mm)1551
Inner reference D2 (mm)1394
Outer raceway offset C (mm)109
Inner raceway offset C1 (mm)75
Inner reference d1 (mm)1387.5
Inner reference d2 (mm)1208
Ring section width B (mm)116
Ring section width B1 (mm)10
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

SKF · SKF Cross-roller · External gearRKS.425060101001outside diameter 1475.5 mm, inside diameter 1080 mm, height 110 mm →SKF · SKF Cross-roller · External gearRKS.425060201001outside diameter 1475.5 mm, inside diameter 1080 mm, height 110 mm →SKF · SKF Cross-roller · External gearRKS.425062621001outside diameter 1475.5 mm, inside diameter 1080 mm, height 110 mm →SKF · SKF Cross-roller · External gearRKS.427050403001outside diameter 1804.8 mm, inside diameter 1430 mm, height 141 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for RKS.427020101001?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For RKS.427020101001, provide the complete reference and suffix, confirm outside diameter 1604 mm, inside diameter 1205 mm, height 130 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
