RKS.23 0411 is listed as a SKF catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 518 mm, inside diameter 304 mm, height 56 mm. Send the complete model suffix, mounting details and operating loads for review.

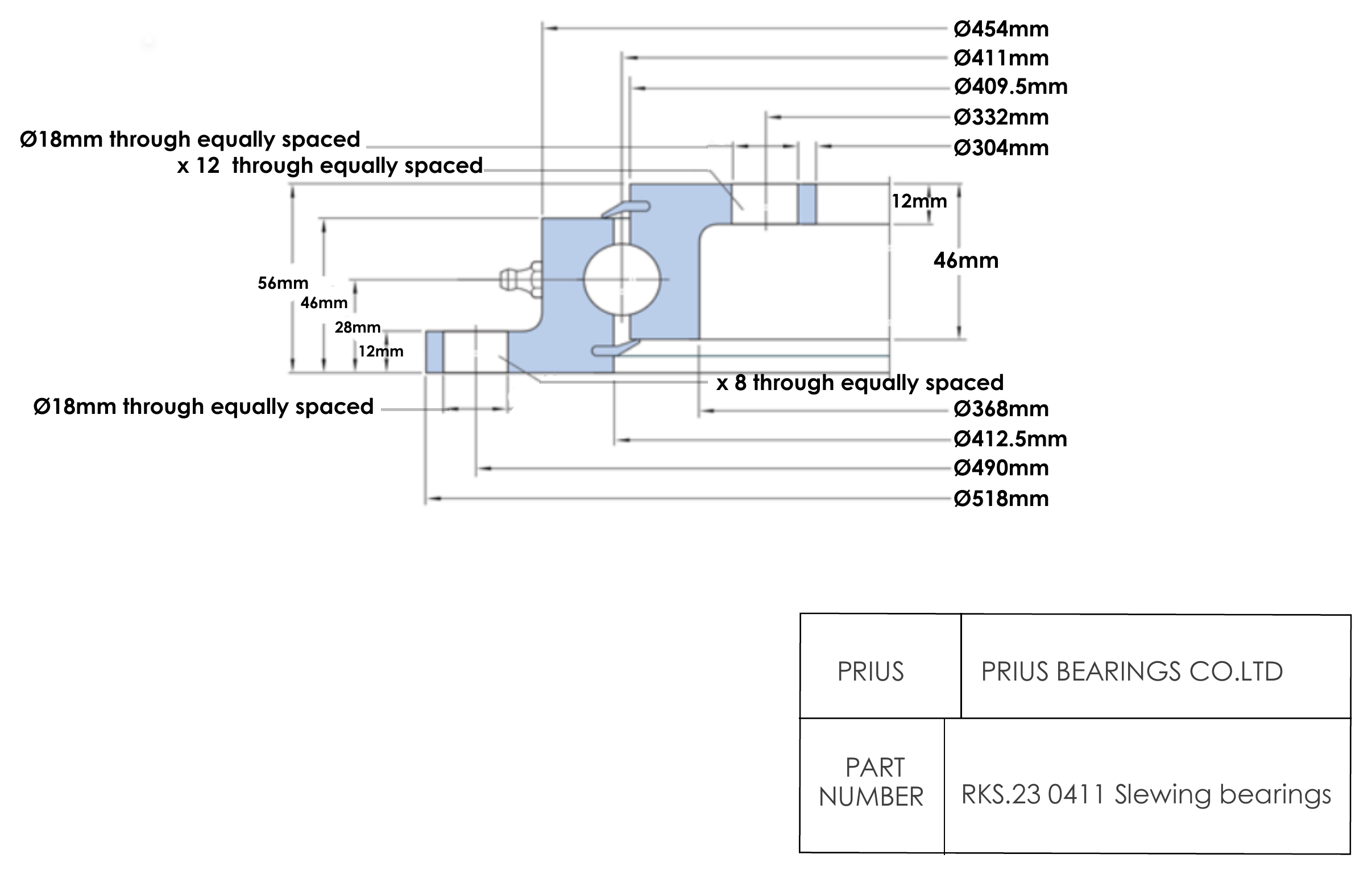

DIMENSIONAL REFERENCE
MODEL RKS.23 0411
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
RKS.23 0411 REPLACEMENT REVIEW
The catalogue reference is 518 mm outside diameter, 304 mm inside diameter and 56 mm height. Confirm all three dimensions against your existing assembly and include the complete reference and drawing revision with your enquiry.
The listed outer-ring mounting reference Je is 490 mm, with 8 holes of 18 mm diameter. The inner-ring reference Ji is 332 mm, with 12 holes of 18 mm diameter. Check ring orientation, hole positions and fastener details on the final drawing as well as the envelope.
This SKF catalogue reference is listed as single-row ball and gearless. Include how the assembly is driven, the axial and radial loads, overturning moment, speed and support structure. The nearby RKS.23 0541 reference has a different envelope; matching the RKS.23 prefix alone does not establish a fit.
PRIUS BEARINGS reviews independent alternatives using the original catalogue reference. SKF is the original-owner trademark used for identification; the final PRIUS drawing and application review determine suitability.
NEED A MATCH?
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
For RKS.23 0411, provide the complete reference and suffix, confirm outside diameter 518 mm, inside diameter 304 mm, height 56 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
