Slewing Rings/PRIUS BEARINGS/RKS.061.25.1414← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.061.25.1414
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.061.25.1414 external gear slewing ring bearingEXTERNAL GEAR / RKS.061.25.1414

DIMENSIONAL REFERENCE

MODEL RKS.061.25.1414

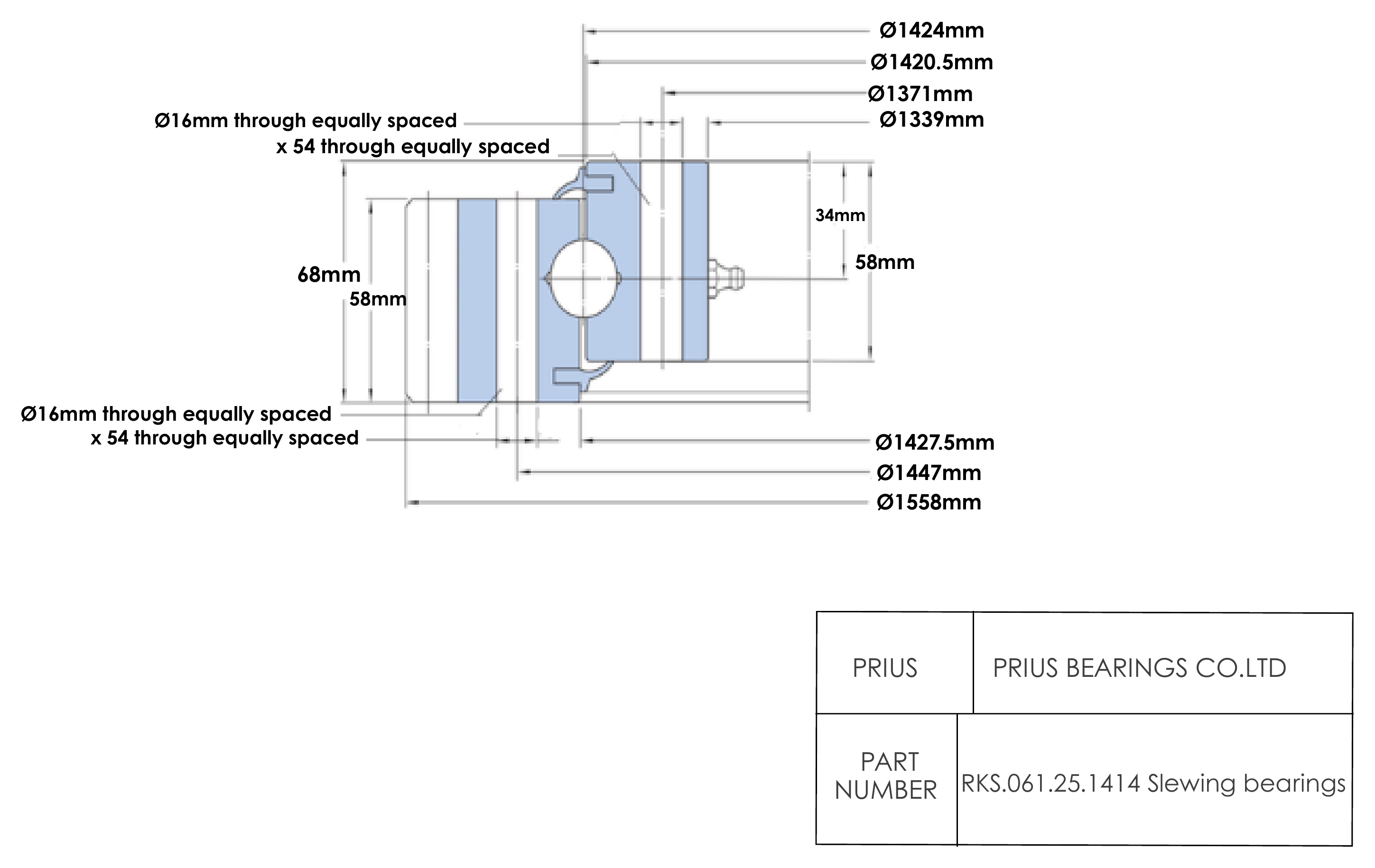

PRIUS BEARINGS RKS.061.25.1414 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.061.25.1414
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.061.25.1414
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)1558
Inside diameter di (mm)1339
Ring height H (mm)68
Mounting hole count54
Bolt diameter (mm)16
Inner ring reference Ji (mm)1371
Inner ring hole diameter Ki (mm)16
Inner ring hole count Ni54
Outer ring reference Je (mm)1477
Outer ring hole diameter Ke (mm)16
Outer ring hole count Ne54
Drawing FileRKS.061.25.1414 slewing bearings.pdf.pdf
