Slewing Rings/PRIUS BEARINGS/XSI 14 0544 N← View all models

PRIUS BEARINGS · SLEWING RING BEARING

XSI 14 0544 N
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL XSI 14 0544 N

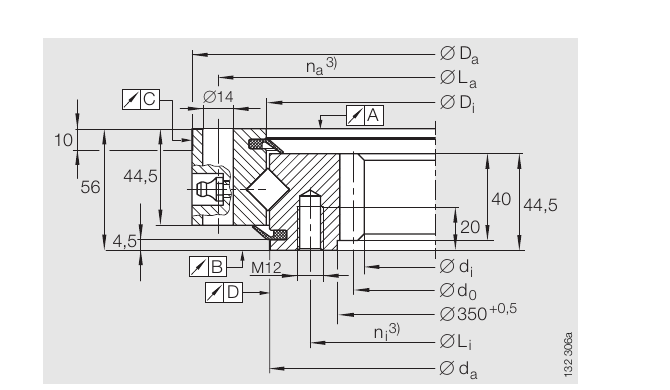

PRIUS BEARINGS XSI 14 0544 N 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

XSI 14 0544 N
parameters

Key dimensions and load information for preliminary selection.

ModelXSI 14 0544 N
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeSlewing ring bearing
Outside diameter Da (mm)614
Inside diameter di (mm)545
Ring height H (mm)56
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)590
Outer mounting hole count32
Inner hole pitch circle Li (mm)505
Inner mounting hole count32
Permissible friction-locking load Fr perm (kN)132.2
Basic dynamic axial load rating Ca (kN)270
Basic static axial load rating C0a (kN)680
Basic dynamic radial load rating Cr (kN)170
Basic static radial load rating C0r (kN)330
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Schaeffler · Slewing ring bearingXSI 14 0414 NView dimensions and engineering data →Schaeffler · Slewing ring bearingXSI 14 0644 NView dimensions and engineering data →Schaeffler · Slewing ring bearingXSI 14 0744 NView dimensions and engineering data →Schaeffler · Slewing ring bearingXSI 14 0844 NView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
