VSU 25 0855
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL VSU 25 0855

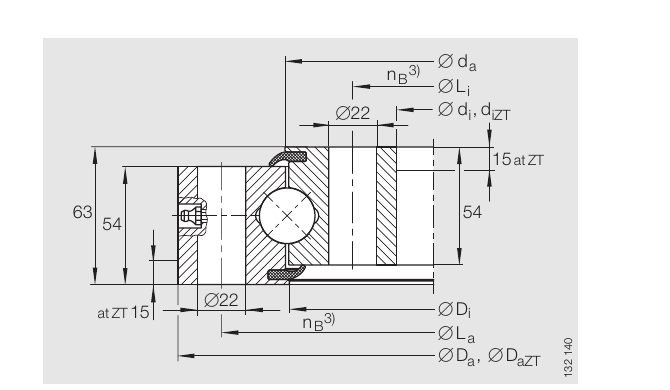

PRIUS BEARINGS VSU 25 0855 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

VSU 25 0855
parameters

Key dimensions and load information for preliminary selection.

ModelVSU 25 0855
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeSlewing ring bearing
Outside diameter Da (mm)955
Inside diameter di (mm)953
Ring height H (mm)80
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)915
Outer mounting hole count28
Inner hole pitch circle Li (mm)794
Inner mounting hole count28
Permissible friction-locking load Fr perm (kN)22.4
Basic dynamic axial load rating Ca (kN)83
Basic static axial load rating C0a (kN)206
Basic dynamic radial load rating Cr (kN)78
Basic static radial load rating C0r (kN)93
