PRIUS BEARINGS · SLEWING RING BEARING

VSI 25 0755 N
slewing ring bearing

VSI 25 0755 N is listed as a Schaeffler catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 855 mm, inside diameter 610 mm, height 80 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

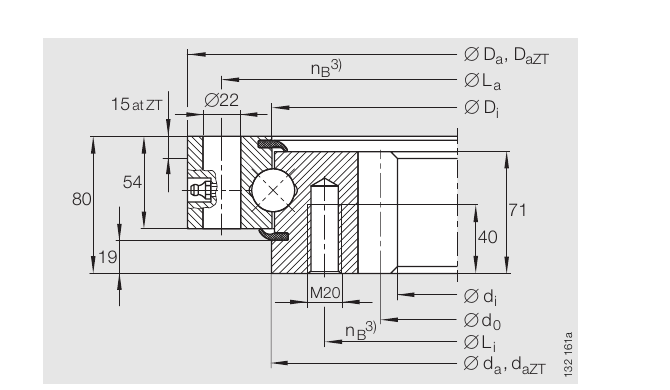

DIMENSIONAL REFERENCE

MODEL VSI 25 0755 N
Schaeffler catalogue section reference for VSI 25 0755 N

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

VSI 25 0755 N
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelVSI 25 0755 N
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeFour-point contact ball · Internal gear
Outside diameter Da (mm)855
Inside diameter di (mm)610
Ring height H (mm)80
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)815
Outer mounting hole count24
Inner hole pitch circle Li (mm)694
Inner mounting hole count24
Permissible friction-locking load Fr perm (kN)35
Basic dynamic axial load rating Ca (kN)165
Basic static axial load rating C0a (kN)420
Basic dynamic radial load rating Cr (kN)108
Basic static radial load rating C0r (kN)190
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Schaeffler · Four-point contact ball · Internal gearVSI 25 0855 Noutside diameter 955 mm, inside diameter 710 mm, height 80 mm →Schaeffler · Four-point contact ball · Internal gearVSI 20 0744 Noutside diameter 816 mm, inside diameter 648 mm, height 56 mm →Schaeffler · Four-point contact ball · Internal gearVSI 25 0955 Noutside diameter 1055 mm, inside diameter 810 mm, height 80 mm →Schaeffler · Four-point contact ball · Internal gearVSI 20 0844 Noutside diameter 916 mm, inside diameter 736 mm, height 56 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for VSI 25 0755 N?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For VSI 25 0755 N, provide the complete reference and suffix, confirm outside diameter 855 mm, inside diameter 610 mm, height 80 mm, and include gear configuration, mounting-hole details, loads and operating speed.
