VSA 25 0755 N
slewing ring bearing

VSA 25 0755 N is listed as a Schaeffler catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 898 mm, inside diameter 655 mm, height 80 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS VSA 25 0755 N external gear slewing ring bearingEXTERNAL GEAR / VSA 25 0755 N

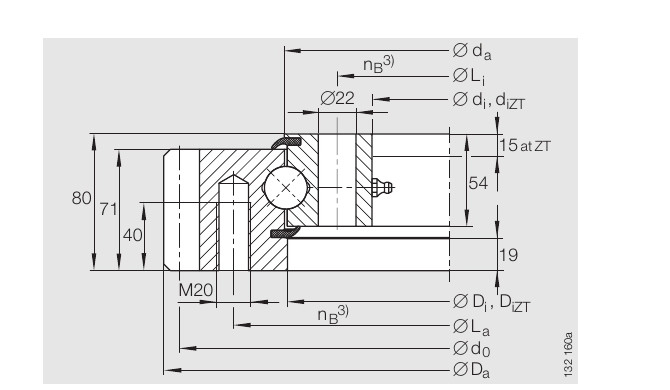

DIMENSIONAL REFERENCE

MODEL VSA 25 0755 N
Schaeffler catalogue section reference for VSA 25 0755 N

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

VSA 25 0755 N
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelVSA 25 0755 N
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeFour-point contact ball · External gear
Outside diameter Da (mm)898
Inside diameter di (mm)655
Ring height H (mm)80
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)816
Outer mounting hole count24
Inner hole pitch circle Li (mm)695
Inner mounting hole count24
Permissible friction-locking load Fr perm (kN)44.8
Basic dynamic axial load rating Ca (kN)118
Basic static axial load rating C0a (kN)410
Basic dynamic radial load rating Cr (kN)77
Basic static radial load rating C0r (kN)185
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Schaeffler · Four-point contact ball · External gearVSA 25 0855 Noutside diameter 997 mm, inside diameter 755 mm, height 80 mm →Schaeffler · Four-point contact ball · External gearVSA 20 0744 Noutside diameter 838.1 mm, inside diameter 672 mm, height 56 mm →Schaeffler · Four-point contact ball · External gearVSA 25 0955 Noutside diameter 1096 mm, inside diameter 855 mm, height 80 mm →Schaeffler · Four-point contact ball · External gearVSA 20 0844 Noutside diameter 950.1 mm, inside diameter 772 mm, height 56 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for VSA 25 0755 N?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For VSA 25 0755 N, provide the complete reference and suffix, confirm outside diameter 898 mm, inside diameter 655 mm, height 80 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
