PRIUS BEARINGS · SLEWING RING BEARING

VLU 20 0544
slewing ring bearing

VLU 20 0544 is listed as a Schaeffler catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 648 mm, inside diameter 646 mm, height 56 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL VLU 20 0544

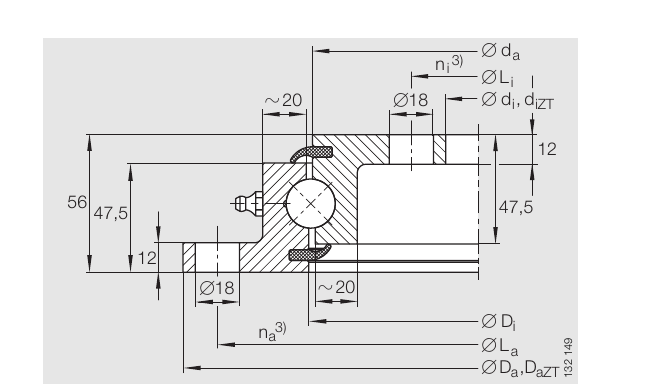

Schaeffler catalogue section reference for VLU 20 0544

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

VLU 20 0544
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelVLU 20 0544
Brand / alternativePRIUS BEARINGS · Alternative for Schaeffler
TypeFour-point contact ball · Gearless
Outside diameter Da (mm)648
Inside diameter di (mm)646
Ring height H (mm)56
Load rating referenceSee the Schaeffler static/dynamic load curves for the corresponding model
Outer hole pitch circle La (mm)620
Outer mounting hole count10
Inner hole pitch circle Li (mm)505
Inner mounting hole count16
Permissible friction-locking load Fr perm (kN)72.5
Basic dynamic axial load rating Ca (kN)188
Basic static axial load rating C0a (kN)385
Basic dynamic radial load rating Cr (kN)123
Basic static radial load rating C0r (kN)145
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Schaeffler · Four-point contact ball · GearlessVLU 20 0644outside diameter 748 mm, inside diameter 746 mm, height 56 mm →Schaeffler · Four-point contact ball · GearlessVLU 20 0414outside diameter 518 mm, inside diameter 516 mm, height 56 mm →Schaeffler · Four-point contact ball · GearlessVLU 20 0744outside diameter 848 mm, inside diameter 846 mm, height 56 mm →Schaeffler · Four-point contact ball · GearlessVLU 20 0844outside diameter 948 mm, inside diameter 946 mm, height 56 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for VLU 20 0544?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For VLU 20 0544, provide the complete reference and suffix, confirm outside diameter 648 mm, inside diameter 646 mm, height 56 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
