PRIUS BEARINGS · SLEWING RING BEARING

092.35.1802.990.11.1502
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 092.35.1802.990.11.1502

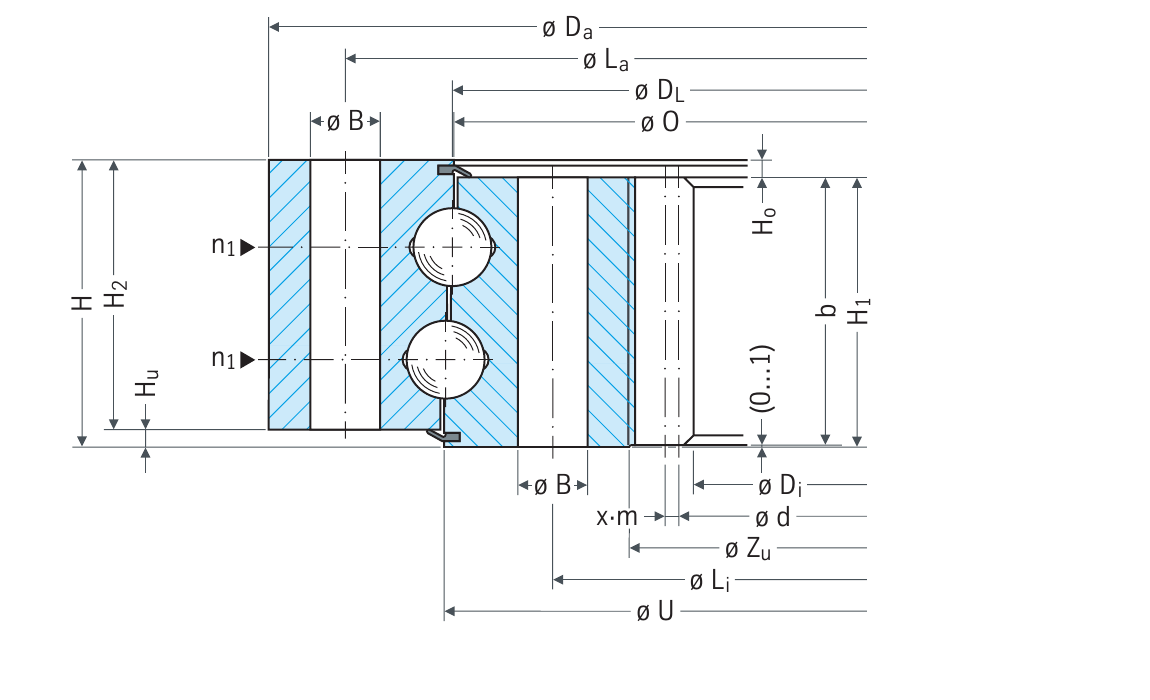

PRIUS BEARINGS 092.35.1802.990.11.1502 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

092.35.1802.990.11.1502
parameters

Key dimensions and load information for preliminary selection.

Model092.35.1802.990.11.1502
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)1802 mm
Outside diameter Da (mm)1968 mm
Inside diameter di (mm)1582 mm
Ring height H (mm)133 mm
Outer reference ØO (mm)1800 mm
Inner reference ØU (mm)1810 mm
Outer ring height H1 (mm)124 mm
Inner ring height H2 (mm)124 mm
Housing Height9 mm
Cover Height9 mm
Outer mounting length La (mm)1895 mm
Inner mounting length Li (mm)1715 mm
Mounting hole count56
Bolt diameter (mm)33 mm
Bolt size30
Hole pitch diameter d (mm)1596 mm
Gear module14
Gear tooth count114
Tooth correction-7 mm
Tooth width b (mm)0 mm
Weight (kg)123 kg
Confirm dimensions & request a quote →
