Slewing Rings/PRIUS BEARINGS/092.30.1415.990.11.1502← View all models

PRIUS BEARINGS · SLEWING RING BEARING

092.30.1415.990.11.1502
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 092.30.1415.990.11.1502

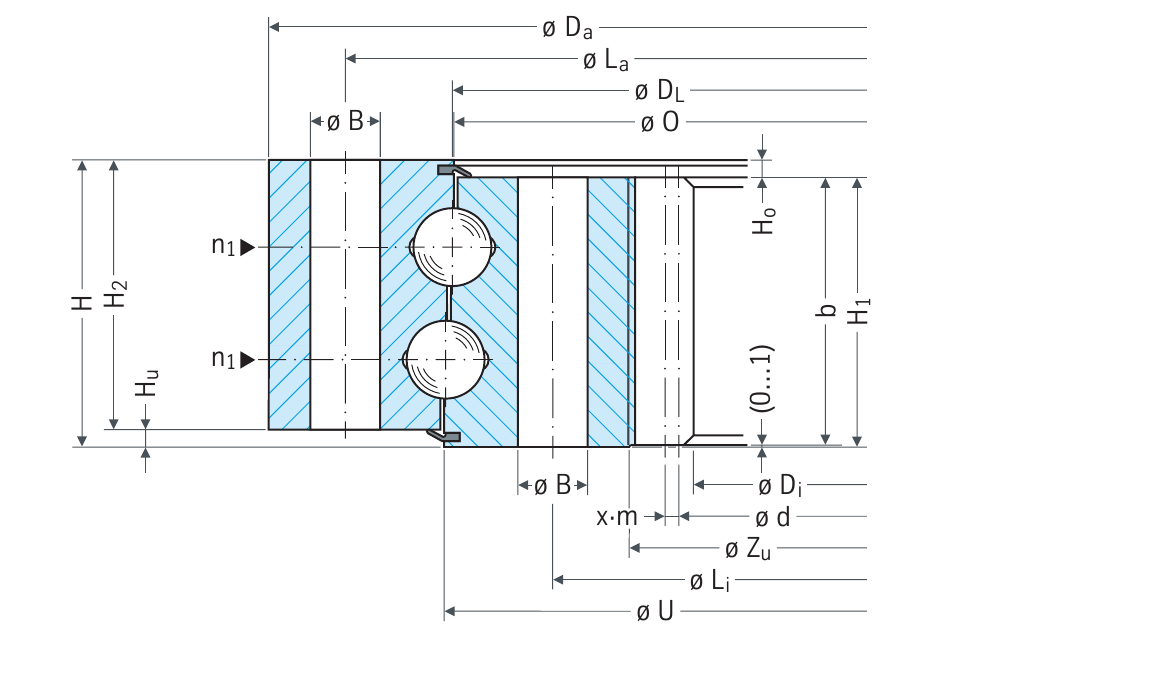

PRIUS BEARINGS 092.30.1415.990.11.1502 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

092.30.1415.990.11.1502
parameters

Key dimensions and load information for preliminary selection.

Model092.30.1415.990.11.1502
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)1415 mm
Outside diameter Da (mm)1566 mm
Inside diameter di (mm)1212 mm
Ring height H (mm)119 mm
Outer reference ØO (mm)1413 mm
Inner reference ØU (mm)1423 mm
Outer ring height H1 (mm)110 mm
Inner ring height H2 (mm)110 mm
Housing Height9 mm
Cover Height9 mm
Outer mounting length La (mm)1500 mm
Inner mounting length Li (mm)1336 mm
Mounting hole count48
Bolt diameter (mm)30 mm
Bolt size27
Hole pitch diameter d (mm)1224 mm
Gear module12
Gear tooth count102
Tooth correction-6 mm
Tooth width b (mm)0 mm
Weight (kg)109 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Rothe Erde · Slewing ring bearing060.20.0414.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0544.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0644.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0744.575.01.1403View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
