Slewing Rings/PRIUS BEARINGS/091.50.2266.990.41.1502← View all models

PRIUS BEARINGS · SLEWING RING BEARING

091.50.2266.990.41.1502
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 091.50.2266.990.41.1502

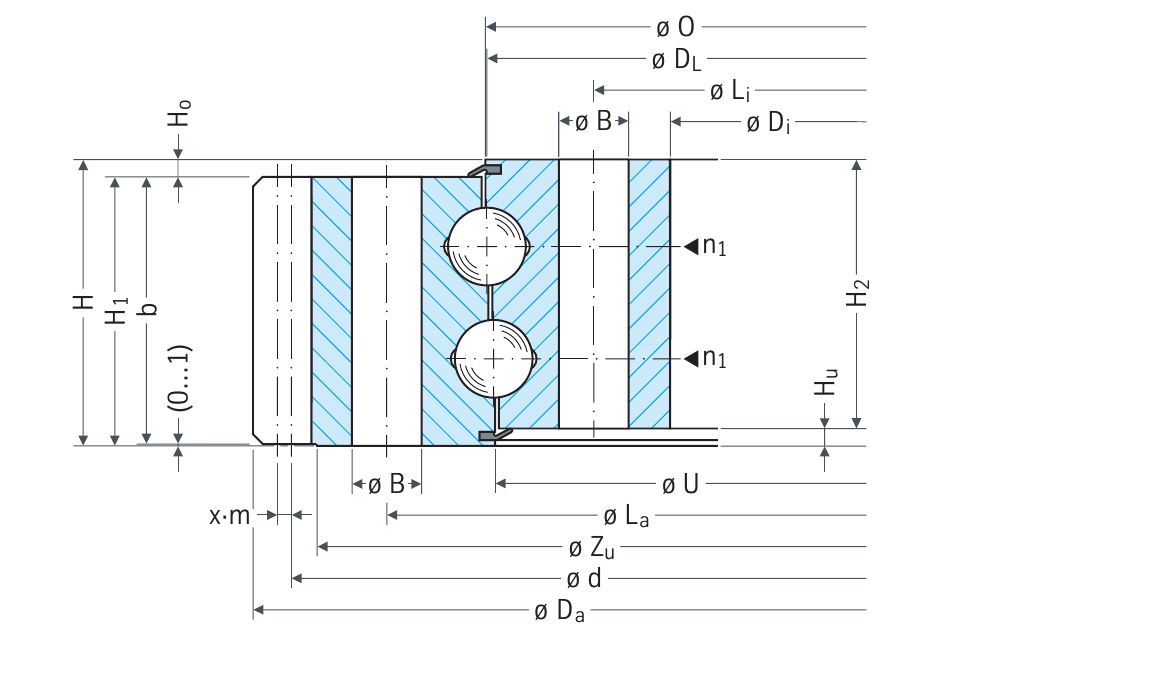

PRIUS BEARINGS 091.50.2266.990.41.1502 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

091.50.2266.990.41.1502
parameters

Key dimensions and load information for preliminary selection.

Model091.50.2266.990.41.1502
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)2266 mm
Outside diameter Da (mm)2552.4 mm
Inside diameter di (mm)2064 mm
Ring height H (mm)188 mm
Outer reference ØO (mm)2277 mm
Inner reference ØU (mm)2264 mm
Outer ring height H1 (mm)179 mm
Inner ring height H2 (mm)179 mm
Housing Height9 mm
Cover Height9 mm
Outer mounting length La (mm)2391 mm
Inner mounting length Li (mm)2150 mm
Mounting hole count56
Bolt diameter (mm)39 mm
Bolt size36
Hole pitch diameter d (mm)2502 mm
Gear module18
Gear tooth count139
Tooth correction9 mm
Tooth width b (mm)1.8 mm
Weight (kg)178 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Rothe Erde · Slewing ring bearing060.20.0414.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0544.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0644.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0744.575.01.1403View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
