PRIUS BEARINGS · SLEWING RING BEARING

062.25.1180.001.21.1504
slewing ring bearing

062.25.1180.001.21.1504 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1287 mm, inside diameter 1020 mm, height 69 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 062.25.1180.001.21.1504

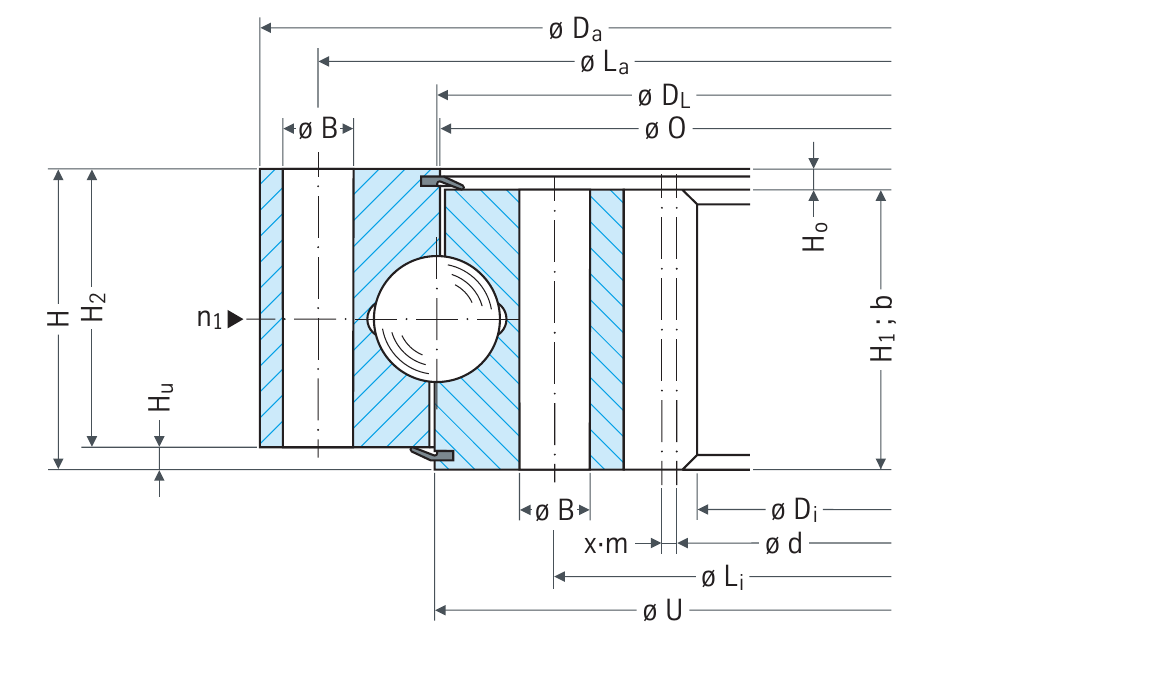

Rothe Erde catalogue section reference for 062.25.1180.001.21.1504

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

062.25.1180.001.21.1504
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

Model062.25.1180.001.21.1504
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeRothe Erde slewing bearing
Raceway diameter (mm)1188 mm
Outside diameter Da (mm)1287 mm
Inside diameter di (mm)1020 mm
Ring height H (mm)69 mm
Outer reference ØO (mm)1179 mm
Inner reference ØU (mm)1181 mm
Outer ring height H1 (mm)60 mm
Inner ring height H2 (mm)54 mm
Housing Height15 mm
Cover Height9 mm
Outer mounting length La (mm)1243 mm
Inner mounting length Li (mm)1117 mm
Mounting hole count36
Mounting hole diameter (mm)22 mm
Bolt size20
Hole pitch diameter d (mm)1030 mm
Gear module10
Gear tooth count103
Tooth correction5.0 mm
Tooth width b (mm)59 mm
Weight (kg)185 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rothe Erde · Rothe Erde slewing bearing062.25.1180.000.11.1504outside diameter 1287 mm, inside diameter 1020 mm, height 69 mm →Rothe Erde · Rothe Erde slewing bearing062.25.1155.500.11.1503outside diameter 1255 mm, inside diameter 1010 mm, height 80 mm →Rothe Erde · Rothe Erde slewing bearing062.25.1155.575.11.1403outside diameter 1253 mm, inside diameter 1010 mm, height 80 mm →Rothe Erde · Rothe Erde slewing bearing062.30.1120.000.11.1504outside diameter 1232 mm, inside diameter 960 mm, height 79 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for 062.25.1180.001.21.1504?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For 062.25.1180.001.21.1504, provide the complete reference and suffix, confirm outside diameter 1287 mm, inside diameter 1020 mm, height 69 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
