Slewing Rings/PRIUS BEARINGS/062.25.0886.106.11.1504← View all models

PRIUS BEARINGS · SLEWING RING BEARING

062.25.0886.106.11.1504
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 062.25.0886.106.11.1504

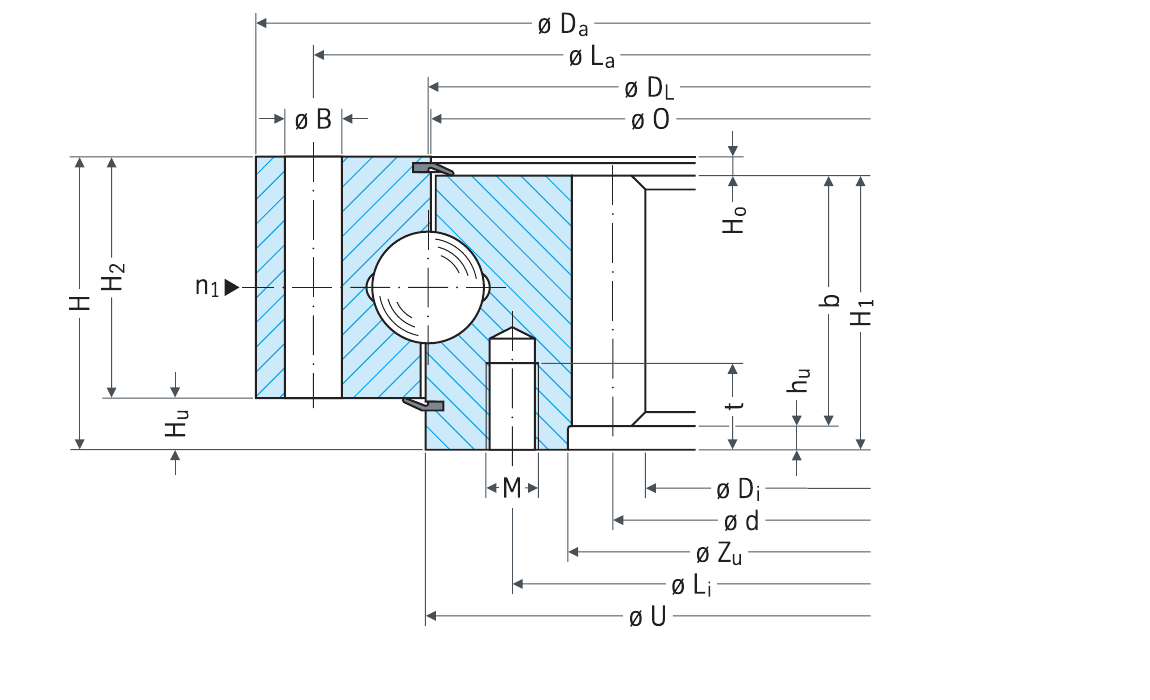

PRIUS BEARINGS 062.25.0886.106.11.1504 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

062.25.0886.106.11.1504
parameters

Key dimensions and load information for preliminary selection.

Model062.25.0886.106.11.1504
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)886 mm
Outside diameter Da (mm)980 mm
Inside diameter di (mm)784 mm
Ring height H (mm)77 mm
Outer reference ØO (mm)885 mm
Inner reference ØU (mm)887 mm
Outer ring height H1 (mm)67 mm
Inner ring height H2 (mm)56 mm
Housing Height21 mm
Cover Height10 mm
Outer mounting length La (mm)944 mm
Inner mounting length Li (mm)850 mm
Mounting hole count36
Bolt diameter (mm)17.5 mm
Bolt size16
Hole pitch diameter d (mm)24 mm
Tooth width b (mm)0.0 mm
Weight (kg)62 kg
Gear diameter (mm)800
Gear module8
Gear tooth count100 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Rothe Erde · Slewing ring bearing060.20.0414.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0544.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0644.575.01.1403View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0744.575.01.1403View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
