PRIUS BEARINGS · SLEWING RING BEARING

062.20.0414.500.01.1503
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 062.20.0414.500.01.1503

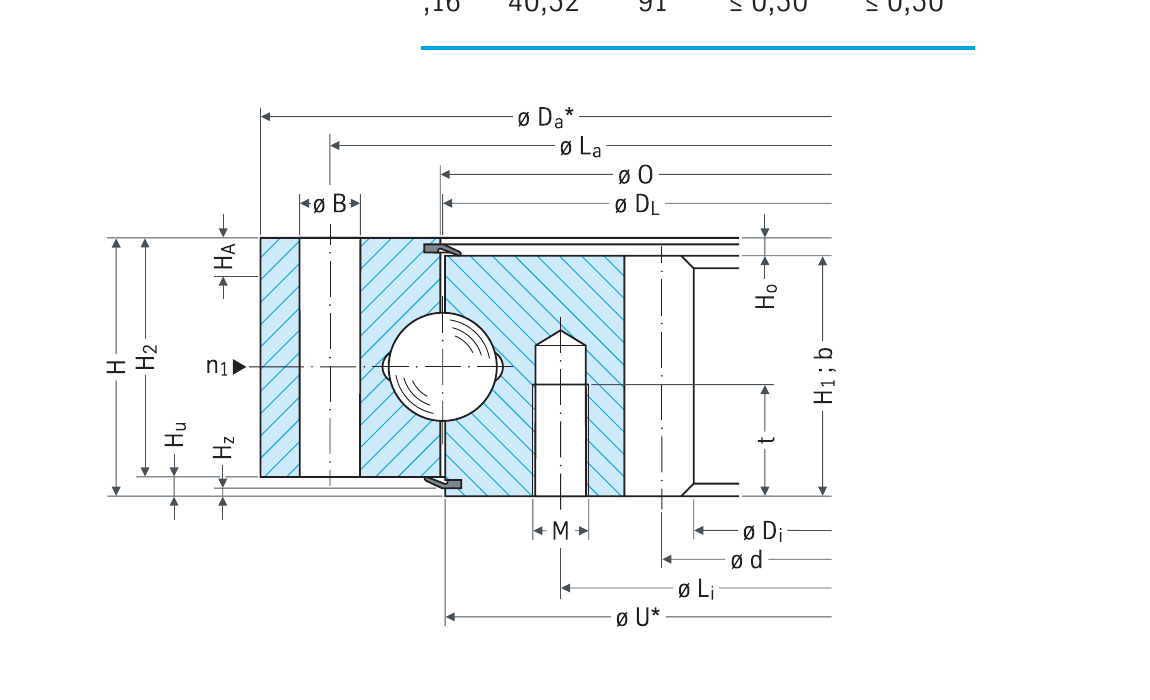

PRIUS BEARINGS 062.20.0414.500.01.1503 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

062.20.0414.500.01.1503
parameters

Key dimensions and load information for preliminary selection.

Model062.20.0414.500.01.1503
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Bearing typeSeries 06 single-row four-point bearing, internal gearing
Raceway diameter (mm)414 mm
Outside diameter Da (mm)486 mm
Inside diameter di (mm)326.5 mm
Ring height H (mm)56 mm
Outer reference ØO (mm)415.5 mm
Inner reference ØU (mm)412.5 mm
Outer ring height H1 (mm)45.5 mm
Inner ring height H2 (mm)45.5 mm
Outer mounting length La (mm)460 mm
Inner mounting length Li (mm)375 mm
Mounting hole count24
Bolt diameter (mm)13.5 mm
Bolt sizeM12
Gear diameter (mm)335 mm
Gear module5 mm
Gear tooth count67
Tooth width b (mm)45.5 mm
Tooth force, nominal (kN)13.54 kN
Tooth force, maximum (kN)27.08 kN
Weight (kg)31 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Rothe Erde · Slewing ring bearing060.20.0414.500.01.1503View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.20.0544.500.01.1503View dimensions and engineering data →Rothe Erde · Slewing ring bearing061.20.0414.500.01.1503View dimensions and engineering data →Rothe Erde · Slewing ring bearing060.25.0475.000.11.1504View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
