PRIUS BEARINGS · SLEWING RING BEARING

061.20.0744.575.01.1403
slewing ring bearing

061.20.0744.575.01.1403 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 838.8 mm, inside diameter 56 mm, height 742.5 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 061.20.0744.575.01.1403

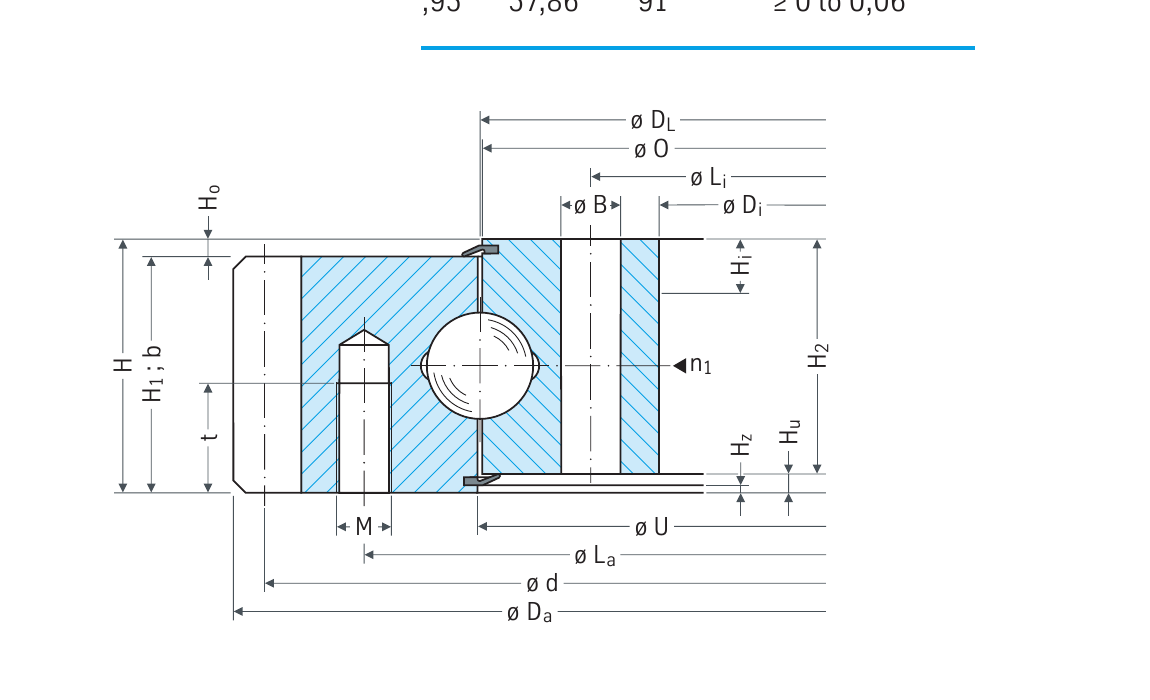

Rothe Erde catalogue section reference for 061.20.0744.575.01.1403

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

061.20.0744.575.01.1403
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

Model061.20.0744.575.01.1403
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeRothe Erde slewing bearing
Raceway diameter (mm)744 mm
Outside diameter Da (mm)838.8 mm
Inside diameter di (mm)56 mm
Ring height H (mm)742.5 mm
Outer reference ØO (mm)45.5 mm
Inner reference ØU (mm)45.5 mm
Outer ring height H1 (mm)10.5 mm
Inner ring height H2 (mm)10.5 mm
Housing Height785 mm
Cover Height698 mm
Outer mounting length La (mm)36 mm
Inner mounting length Li (mm)40 mm
Mounting hole count13.5
Mounting hole diameter (mm)12 mm
Bolt size20
Hole pitch diameter d (mm)828 mm
Gear module6
Gear tooth count138
Tooth correction0.6 mm
Tooth width b (mm)45.5 mm
Weight (kg)14.20 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rothe Erde · Rothe Erde slewing bearing061.20.0844.575.01.1403outside diameter 950.4 mm, inside diameter 56 mm, height 842.5 mm →Rothe Erde · Rothe Erde slewing bearing061.20.0644.575.01.1403outside diameter 742.8 mm, inside diameter 56 mm, height 642.5 mm →Rothe Erde · Rothe Erde slewing bearing061.20.0944.575.01.1403outside diameter 1046.4 mm, inside diameter 56 mm, height 942.5 mm →Rothe Erde · Rothe Erde slewing bearing061.20.0544.575.01.1403outside diameter 640.8 mm, inside diameter 56 mm, height 542.5 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for 061.20.0744.575.01.1403?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For 061.20.0744.575.01.1403, provide the complete reference and suffix, confirm outside diameter 838.8 mm, inside diameter 56 mm, height 742.5 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
