Slewing Rings/Rothe Erde references/060.25.0855.500.11.1503← View all models

PRIUS BEARINGS · SLEWING RING BEARING

060.25.0855.500.11.1503
slewing ring bearing

060.25.0855.500.11.1503 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 955 mm, inside diameter 755 mm, height 63 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 060.25.0855.500.11.1503

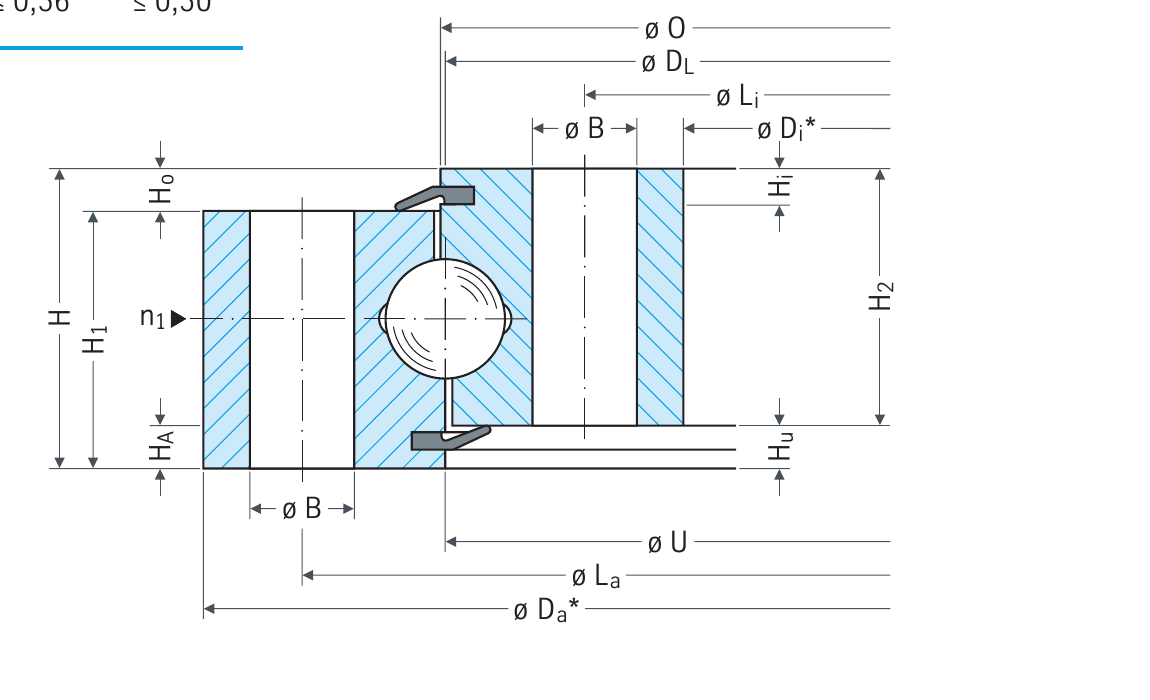

Rothe Erde catalogue section reference for 060.25.0855.500.11.1503

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

060.25.0855.500.11.1503
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

Model060.25.0855.500.11.1503
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeRothe Erde slewing bearing
Raceway diameter (mm)855 mm
Outside diameter Da (mm)955 mm
Inside diameter di (mm)755 mm
Ring height H (mm)63 mm
Outer reference ØO (mm)856 mm
Inner reference ØU (mm)854 mm
Outer ring height H1 (mm)54 mm
Inner ring height H2 (mm)54 mm
Housing Height9 mm
Cover Height9 mm
Outer mounting length La (mm)915 mm
Inner mounting length Li (mm)795 mm
Mounting hole count28
Mounting hole diameter (mm)22 mm
Bolt size20
Hole pitch diameter d (mm)100 mm
Gear module4
Gear tooth count0.30
Tooth correction0.25 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rothe Erde · Rothe Erde slewing bearing060.25.0855.575.11.1403outside diameter 953 mm, inside diameter 757 mm, height 63 mm →Rothe Erde · Rothe Erde slewing bearing060.20.0844.575.01.1403outside diameter 914.5 mm, inside diameter 773.5 mm, height 56 mm →Rothe Erde · Rothe Erde slewing bearing060.25.0955.500.11.1503outside diameter 1055 mm, inside diameter 855 mm, height 63 mm →Rothe Erde · Rothe Erde slewing bearing060.25.0955.575.11.1403outside diameter 1053 mm, inside diameter 857 mm, height 63 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for 060.25.0855.500.11.1503?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For 060.25.0855.500.11.1503, provide the complete reference and suffix, confirm outside diameter 955 mm, inside diameter 755 mm, height 63 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
