060.20.0414.500.01.1503
slewing ring bearing

060.20.0414.500.01.1503 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 486 mm, inside diameter 342 mm, height 56 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 060.20.0414.500.01.1503

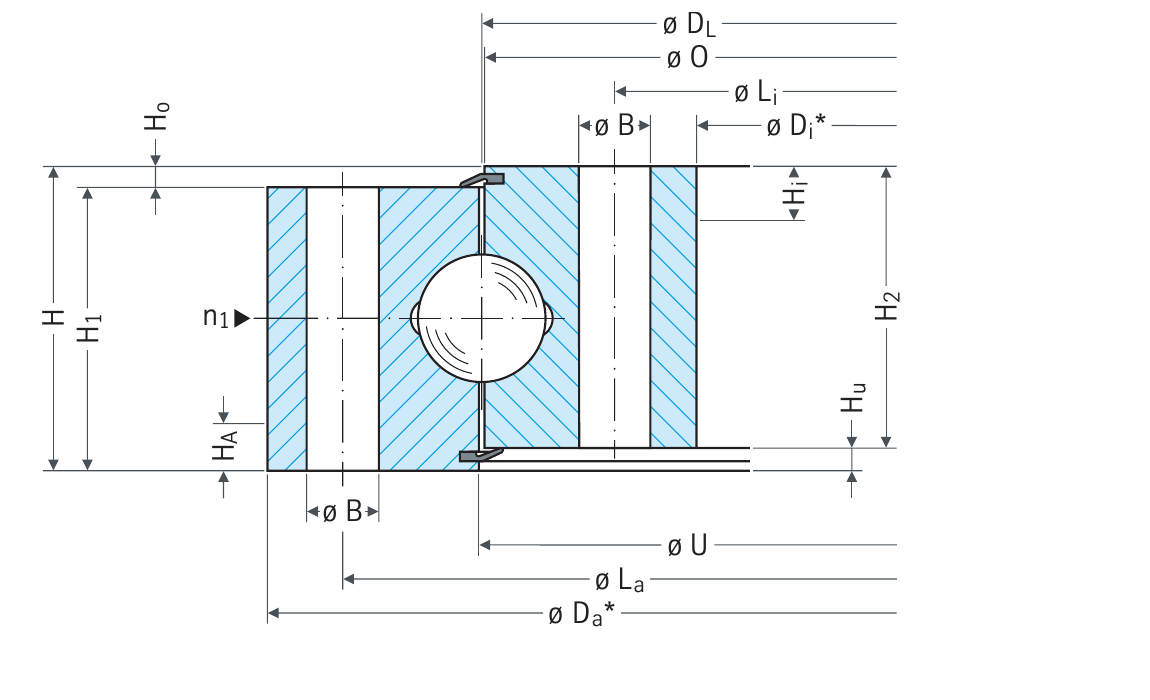

Rothe Erde catalogue section reference for 060.20.0414.500.01.1503

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

060.20.0414.500.01.1503
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

Model060.20.0414.500.01.1503
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSeries 06 single-row four-point bearing, without gearing
Bearing typeSeries 06 single-row four-point bearing, without gearing
Raceway diameter (mm)414 mm
Outside diameter Da (mm)486 mm
Inside diameter di (mm)342 mm
Ring height H (mm)56 mm
Outer reference ØO (mm)412.5 mm
Inner reference ØU (mm)415.5 mm
Outer ring height H1 (mm)45.5 mm
Inner ring height H2 (mm)45.5 mm
Outer mounting length La (mm)460 mm
Inner mounting length Li (mm)368 mm
Mounting hole count24
Mounting hole diameter (mm)13.5 mm
Bolt sizeM12
Weight (kg)29 kg
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rothe Erde · Series 06 single-row four-point bearing060.25.0475.000.11.1504outside diameter 565 mm, inside diameter 385 mm, height 64 mm →Rothe Erde · Series 06 single-row four-point bearing060.20.0544.500.01.1503outside diameter 616 mm, inside diameter 472 mm, height 56 mm →Rothe Erde · Series 06 single-row four-point bearing060.25.0555.000.11.1504outside diameter 650 mm, inside diameter 460 mm, height 63 mm →Rothe Erde · Series 06 single-row four-point bearing060.30.0550.100.11.1504outside diameter 650 mm, inside diameter 450 mm, height 75 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for 060.20.0414.500.01.1503?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For 060.20.0414.500.01.1503, provide the complete reference and suffix, confirm outside diameter 486 mm, inside diameter 342 mm, height 56 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
