PRIUS BEARINGS · SLEWING RING BEARING

A24-119E11A
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS A24-119E11A external gear slewing ring bearingEXTERNAL GEAR / A24-119E11A

DIMENSIONAL REFERENCE

MODEL A24-119E11A

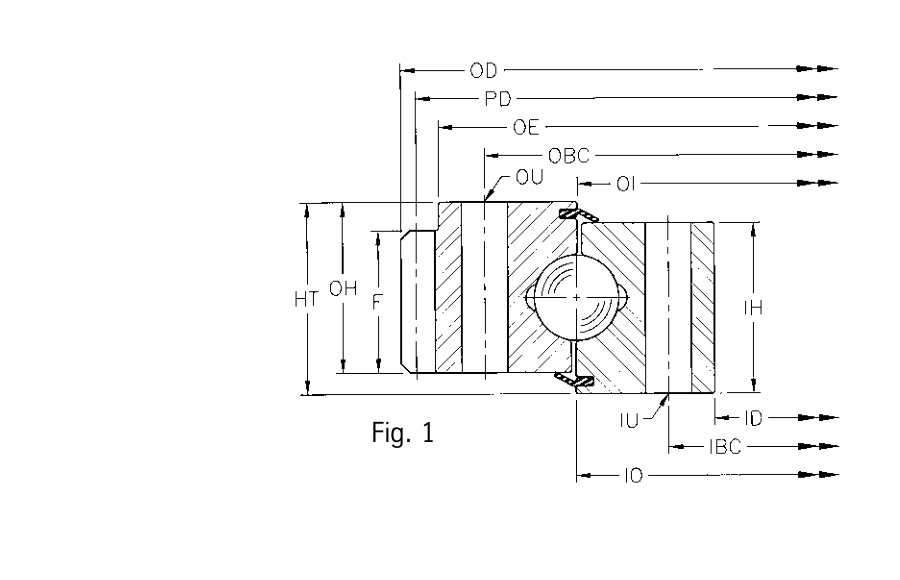

PRIUS BEARINGS A24-119E11A 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

A24-119E11A
parameters

Key dimensions and load information for preliminary selection.

ModelA24-119E11A
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeSlewing ring bearing
Outside diameter OD (in)129.067
Inside diameter ID (in)111.19
Overall height HT (in)6.75
Weight (lb)5050
Outer hole circle OBC (in)124.250
Outer mounting hole count44
Inner hole circle IBC (in)113.688
Inner mounting hole count44
Nominal thrust capacity (lb)3700000
Nominal moment capacity (ft-lb)8390000
Gear pitch diameter PD (in)128.000
Diametral pitch DP1.5
Gear tooth count192
Tangential tooth load F (lb)84100
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Schaeffler · Slewing ring bearingVLA 20 0414 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0544 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0644 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLA 20 0744 NView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
