Slewing Rings/Rotek references/A16-56N5← View all models

PRIUS BEARINGS · SLEWING RING BEARING

A16-56N5
slewing ring bearing

A16-56N5 is listed as a Rotek catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 61.62 in, inside diameter 46.884 in, height 5.25 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL A16-56N5

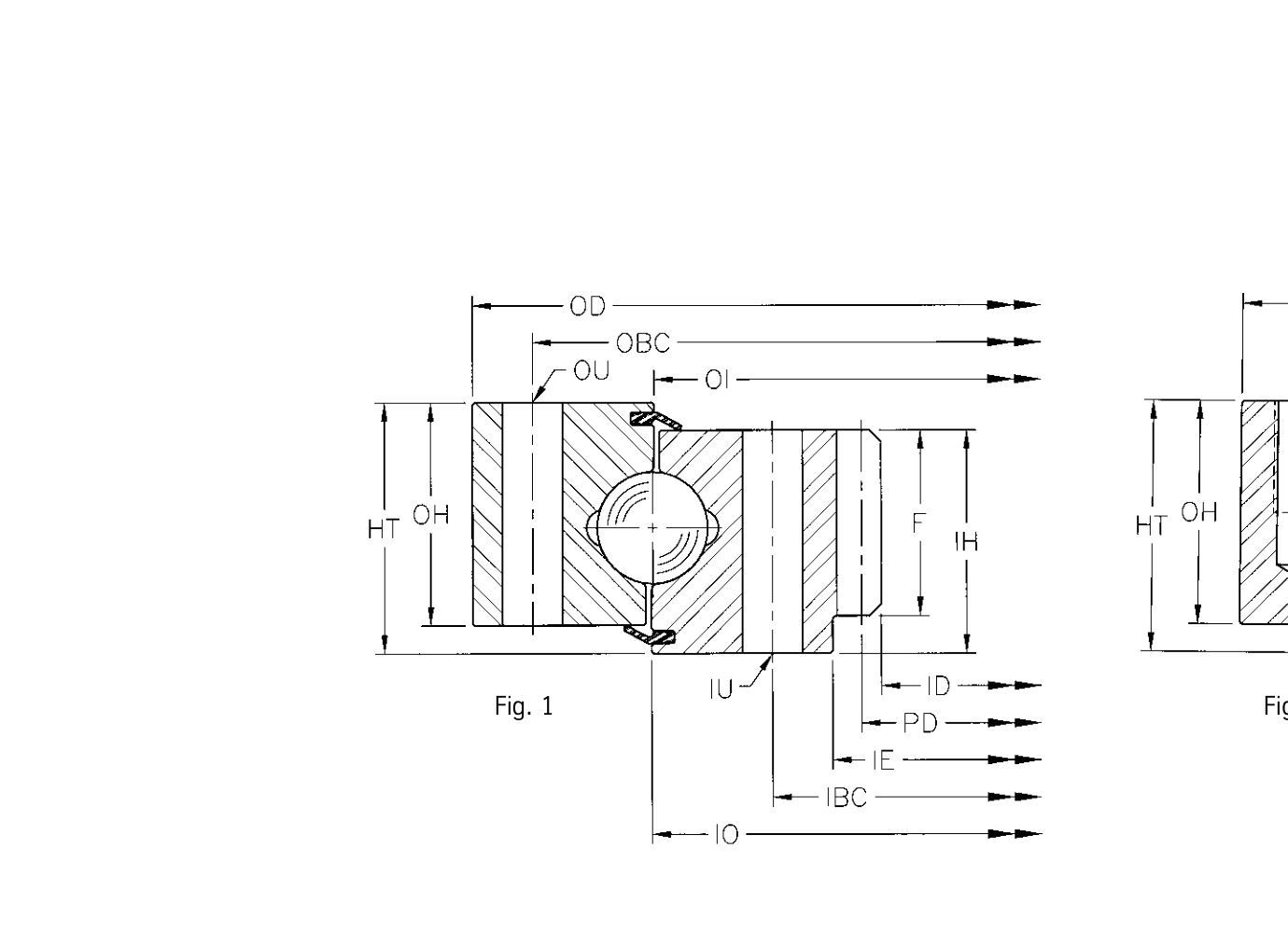

Rotek catalogue section reference for A16-56N5

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

A16-56N5
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelA16-56N5
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeFour-point contact ball · Internal gear
Outside diameter OD (in)61.62
Inside diameter ID (in)46.884
Overall height HT (in)5.25
Weight (lb)1295
Outer hole circle OBC (in)59.750
Outer mounting hole count42
Inner hole circle IBC (in)51.750
Inner mounting hole count42
Nominal thrust capacity (lb)2100000
Nominal moment capacity (ft-lb)2230000
Gear pitch diameter PD (in)47.429
Diametral pitch DP1.75
Gear tooth count83
Tangential tooth load F (lb)480005
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rotek · Four-point contact ball · Internal gearA16-59N2outside diameter 66.22 in, inside diameter 49.7 in, height 4.25 in →Rotek · Four-point contact ball · Internal gearA16-95N6outside diameter 100.25 in, inside diameter 88.96 in, height 5 in →Rotek · Four-point contact ball · External gearA16-53E1Aoutside diameter 61.3 in, inside diameter 47.12 in, height 5.88 in →Rotek · Four-point contact ball · GearlessA16-67P2outside diameter 73.88 in, inside diameter 60.25 in, height 4 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for A16-56N5?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For A16-56N5, provide the complete reference and suffix, confirm outside diameter 61.62 in, inside diameter 46.884 in, height 5.25 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
