Slewing Rings/Rotek references/A14-49P1A← View all models

PRIUS BEARINGS · SLEWING RING BEARING

A14-49P1A
slewing ring bearing

A14-49P1A is listed as a Rotek catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 53.62 in, inside diameter 43.38 in, height 3.81 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL A14-49P1A

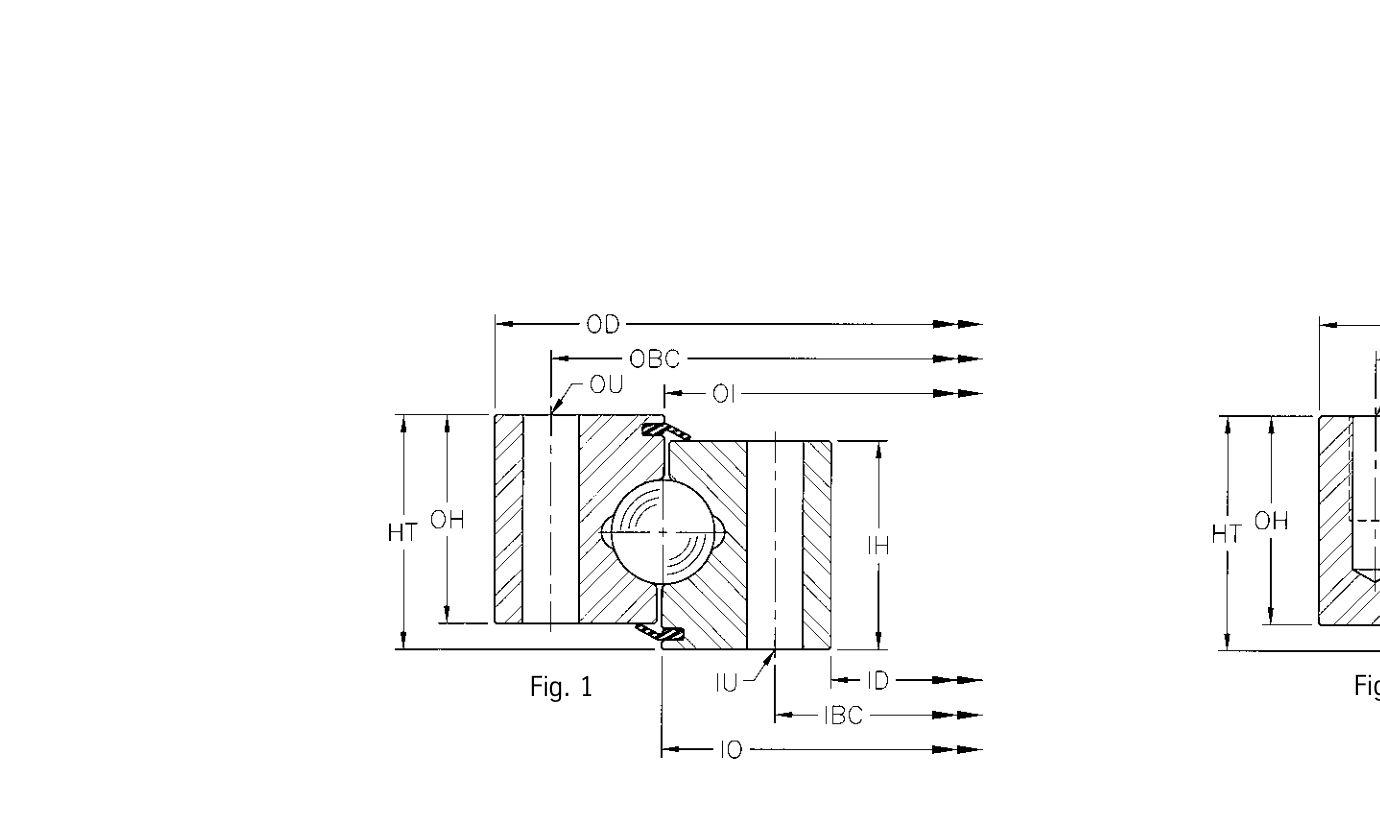

Rotek catalogue section reference for A14-49P1A

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

A14-49P1A
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelA14-49P1A
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeFour-point contact ball · Gearless
Outside diameter OD (in)53.62
Inside diameter ID (in)43.38
Overall height HT (in)3.81
Outer hole circle OBC (in)52.000
Inner hole circle IBC (in)45.000
Inner mounting hole count60
Outer mounting hole count50
Nominal thrust capacity (lb)1010000
Nominal moment capacity (ft-lb)935000
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rotek · Four-point contact ball · GearlessA14-43P1outside diameter 48.25 in, inside diameter 38.13 in, height 3.44 in →Rotek · Four-point contact ball · GearlessA14-31P3outside diameter 35.75 in, inside diameter 26 in, height 3.44 in →Rotek · Four-point contact ball · GearlessA14-89P1outside diameter 94.62 in, inside diameter 84.5 in, height 4.25 in →Rotek · Four-point contact ball · GearlessA14-25P1outside diameter 31.83 in, inside diameter 18.75 in, height 4 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for A14-49P1A?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For A14-49P1A, provide the complete reference and suffix, confirm outside diameter 53.62 in, inside diameter 43.38 in, height 3.81 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
